Запчасти Case IH 1666 (3-02) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (02) - FUEL SYSTEM

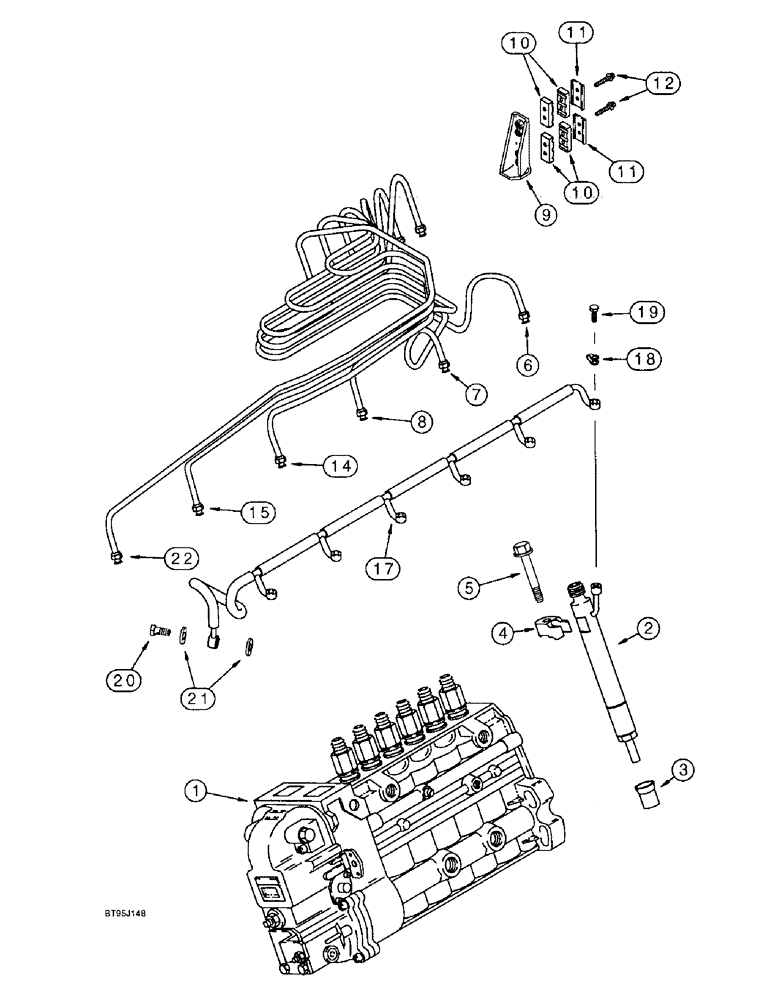

Схема запчастей Case IH 1666 - (3-02) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (02) - FUEL SYSTEM
5
14
1
18
3
10
11
6
22
11
10
21
12
7
2
9
19
15
4
8
17
20

Артикул

Название

Примечание

Количество

1

J923480

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new, parts list Fig. 3-6

1шт.

1

JR923480

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC923480

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, parts list Fig. 3-8

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 3 cylinder

1шт.

9

J917776

BRACE

BRACKET fuel tube

2шт.

10

J917747

CLAMP

fuel tube

4шт.

11

J904519

SUPPORT

tube retaining

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 and J903723

4шт.

14

J910521

FUEL TUBE

fuel injector, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 6 cylinder

1шт.

17

J920595

TUBE ASSY.

fuel drain

1шт.

18

J903380

SEAL

connector

6шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

20

J924726

BANJO BOLT

check, replaces J916360

1шт.

21

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

Выбрано товаров: 22
