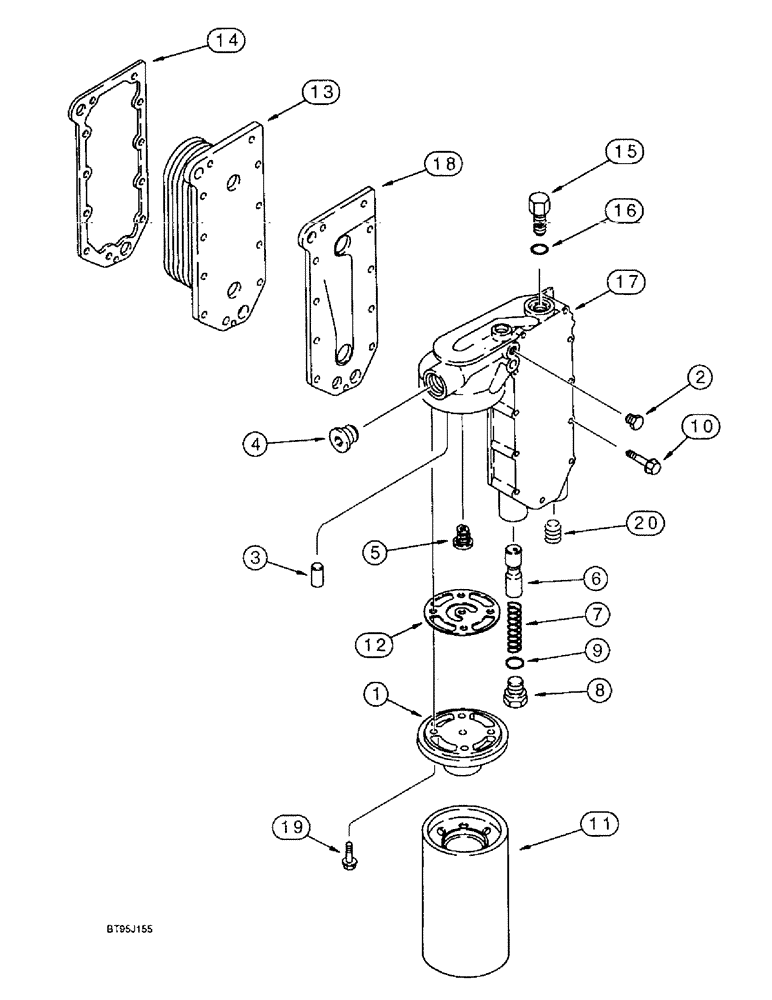

Запчасти Case IH 1666 (2-46) - OIL FILTER AND COOLER, 6T-830 ENGINE (01) - ENGINE

1

J918334

FILTER HEAD

Oil

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

dowel, locating

1шт.

4

A77505

PLUG

hex socket, 3/4 inch PT, filter head

1шт.

5

J902338

VALVE, PRESSURE RELI

EF

1шт.

6

J918532

PLUNGER

regulator

1шт.

7

A77541

SPRING

compression

1шт.

8

J919016

PLUG

hex, special, 24 mm - 1.50, regulator, Includes: Ref. 9

1шт.

9

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

Heavy, Oil filter head to cylinder block

11шт.

11

J919562

ENGINE OIL FILTER

OIL, cartridge, engine

1шт.

12

J921605

GASKET

filter head

1шт.

13

J918175

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

cooler core

1шт.

15

J919015

THERMOSTAT

temperature

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

sealing

1шт.

17

J922882

COVER

oil cooler, replaces J918403

1шт.

18

J918332

GASKET

cooler cover, oil cooler

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless, Water drain

1шт.
