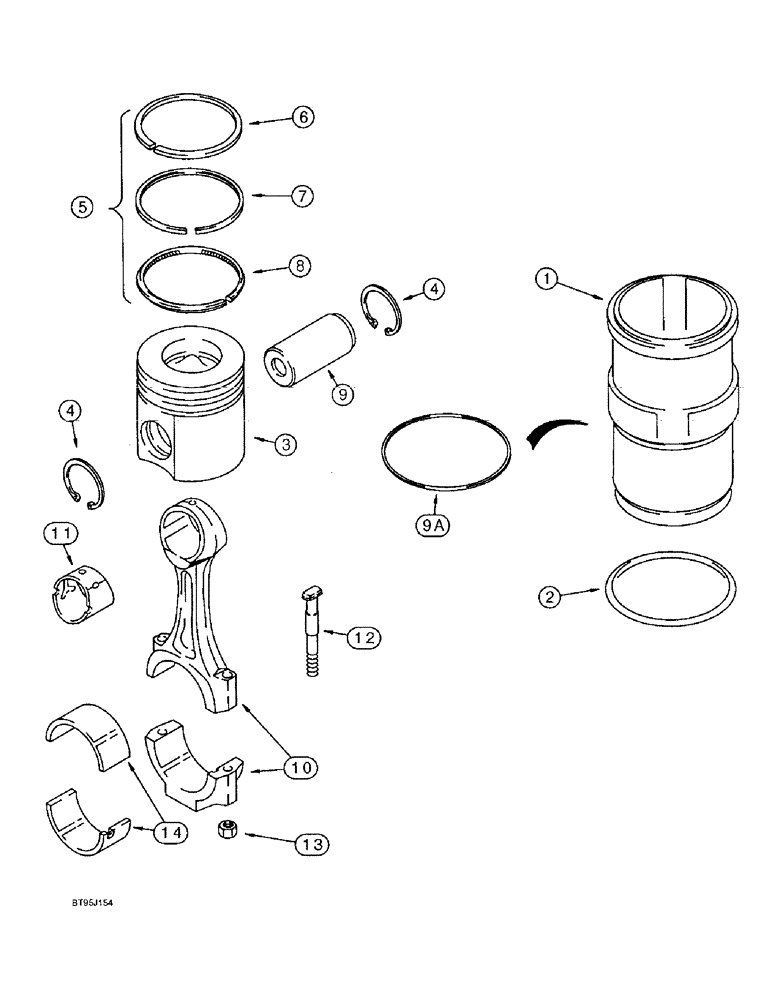

Запчасти Case IH 1666 (2-44) - PISTON AND SLEEVE, 6T-830 ENGINE, CONNECTING ROD (01) - ENGINE

A77798

PACKAGE, REPAIR

KIT piston and sleeve, engine, Includes: Ref. 1 thru 8

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sleeve

1шт.

A77771

PISTON ASSY.

KIT engine, standard, Includes: Ref. 3, 4, and 5

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON engine, stamped 95641

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

(Replaces J901996 and G109044)

2шт.

5

A77802

PISTON RING SET

KIT replaces A77744, Includes: Ref. 6, 7, and 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING keystone with reverse twist, compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

9

J901597

PIN

piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm)

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm)

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030")

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040")

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

JR901383

REMAN-CONNECTING ROD

ASSEMBLY North America only, component parts shown on this Figure do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ASSEMBLY, Includes: Ref. 10 thu 13

6шт.

84487529R

REMAN-CONNECTING ROD

1666 (1/93 - 12/94), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD connecting, two piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

12

J924351

BOLT

BOLT special, rod, bearing cap, replaces J901380 and J920799, connecting rod

2шт.

13

J901381

SPECIAL NUT

hex, rod bolt, connecting rod

2шт.

14

A77563

BEARING SET

KIT upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT upper and lower, 1.00 mm undersize, connecting rod

6шт.
