Запчасти Case IH 1666 (2-42) - FLYWHEEL, 6T-830 ENGINE (01) - ENGINE

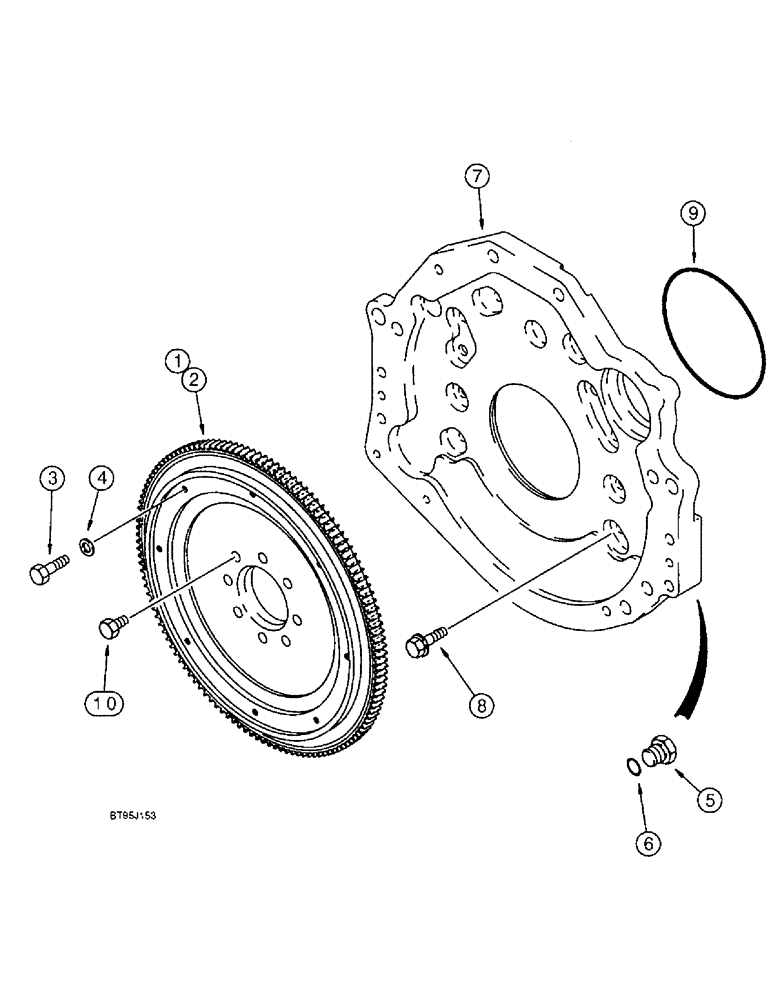

Схема запчастей Case IH 1666 - (2-42) - FLYWHEEL, 6T-830 ENGINE (01) - ENGINE
2
8
7
5
4
9
10
6
1
3

Артикул

Название

Примечание

Количество

1

J917052

FLYWHEEL

ASSEMBLY engine, Includes: Ref. 2

1шт.

2

J905427

GEAR

ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt

8шт.

7

J913593

PLATE

backing, flywheel housing

1шт.

8

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

9

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

10

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT hex, special, 12 - 1.25 x 50 mm

8шт.

Выбрано товаров: 8
