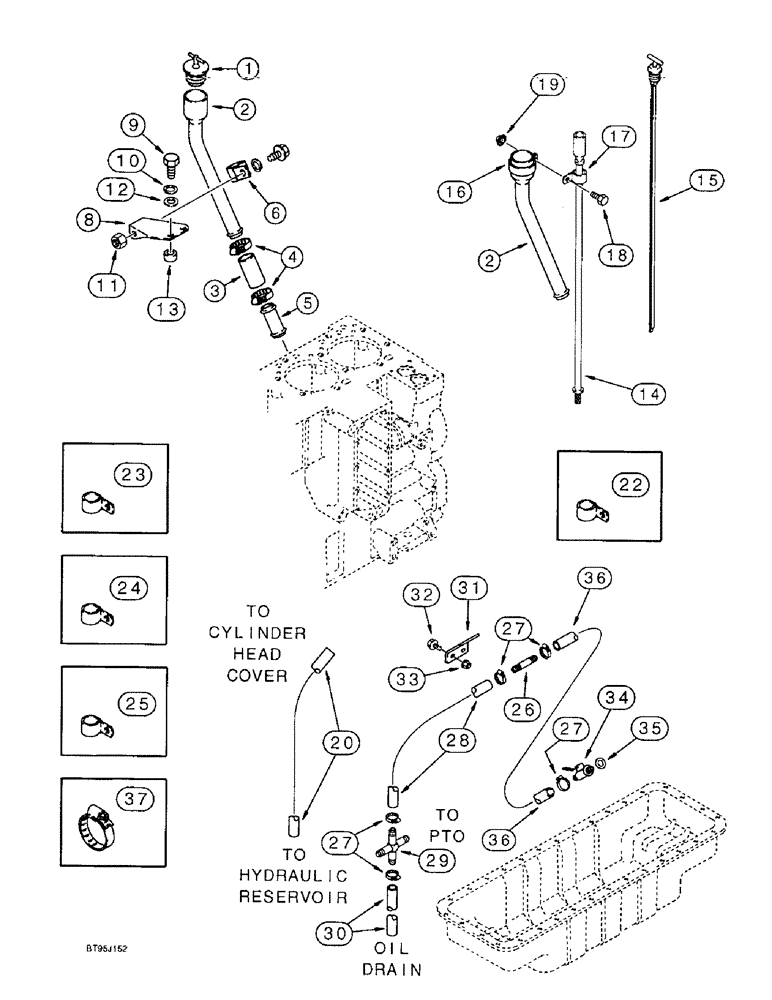

Запчасти Case IH 1666 (2-38) - CYLINDER BLOCK ATTACHING PARTS (01) - ENGINE

1

A77424

FILLER CAP

CAP oil fill tube

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

oil fill, upper

1шт.

3

A77661

HOSE

2-1/2 inch (64 mm) long, oil fill

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

oil fill, lower

1шт.

6

J914022

CLAMP

P-type, filler tube retaining

2шт.

7

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

J914020

BRACKET

support

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

892-11008

LOCK WASHER,8mm ID

4шт.

11

829-1308

NUT,M8, Cl 10

2шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened

2шт.

13

102439A1

SPACER

13/32 x 1/2 x 3/8 inch, replaces D35217

2шт.

14

118880A1

TUBE,9.52 mm ID, 809 mm Length

dipstick

1шт.

15

118790A1

DIPSTICK

oil gauge

1шт.

16

118788A1

CLAMP

dipstick support

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

20

1541750C1

HOSE

148-1/16 inch (3760) mm long, cut from 364360C1 bulk hose, crankcase breather, see this Figure

1шт.

21

281-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

self-tapping, hex washer head, 5/16 NC x 5/8 inch, not shown

1шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Tube retaining

1шт.

23

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, closed

1шт.

24

1301387C2

CLIP

CLAMP square, 2 inch ID, closed

3шт.

25

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

26

1301342C1

FITTING

ADAPTER straight, special, oil drain

1шт.

27

1954736C1

HOSE CLAMP,#24

8шт.

28

1329977C2

HOSE,15.75 mm ID x 840.00 mm

33 inch (840 mm) long, cut from 1977295CX bulk hose, crankcase breather intermediate, see this Figure

1шт.

29

1977169C1

TEE

oil drain

1шт.

30

1977293C3

HOSE,15.748mm ID x 1700mm L

67 inch (1700 mm) long, cut from 1977295CX bulk hose, breather, lower, see this Figure

1шт.

31

1977212C1

BRACKET

BRACKET oil drain shield

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

1330429C1

DRAIN VALVE

oil

1шт.

35

J900216

PACKING RING

WASHER sealing, drain plug

1шт.

36

1329978C3

HOSE

18-1/8 inch (430 mm) long, crankcase oil drain

1шт.

37

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

1шт.

364360C1

HOSE

bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.

1977295CX

LARGE HOSE

HOSE,LARGE bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long

1шт.
