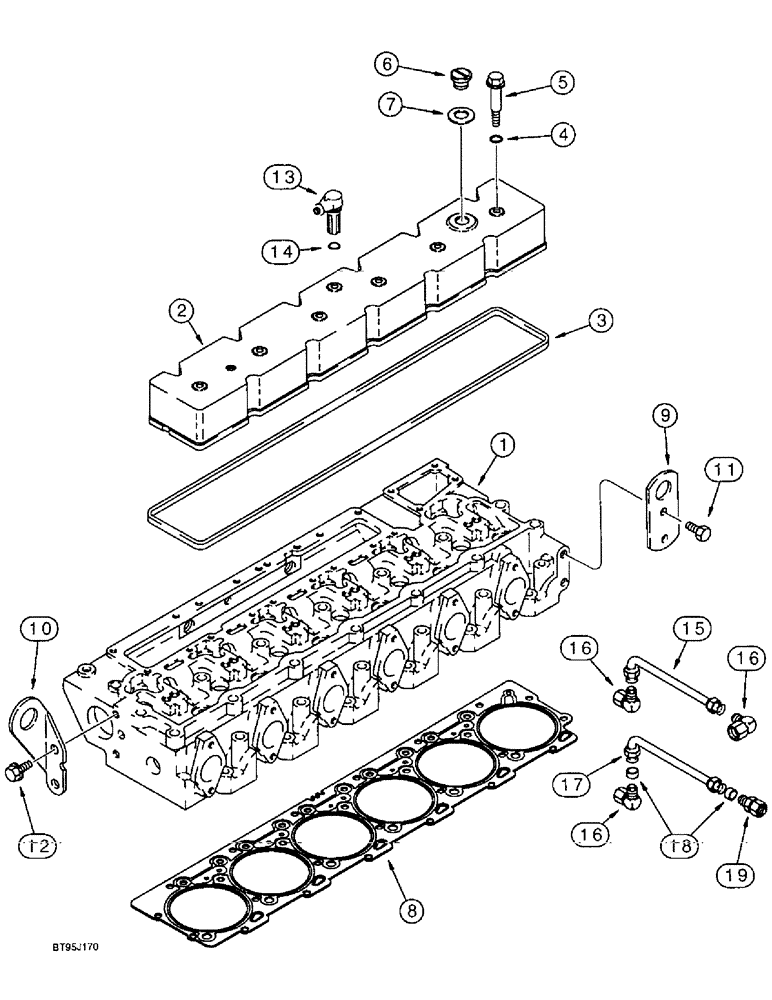

Запчасти Case IH 1666 (2-26) - CYLINDER HEAD COVER, 6T-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, parts list Fig. 2-30

1шт.

2

J927907

VALVE COVER

replaces J907734

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT hex flange cap, special

6шт.

6

J902468

FILLER CAP,Male

CAP oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap sealing

1шт.

8

J928168

GASKET

cylinder head, standard, replaces J921850

1шт.

8

J928180

GASKET

cylinder head, 0.25 mm thicker, replaces J921852

1шт.

8

J928181

GASKET

cylinder head, 0.50 mm thicker, replaces J921853

1шт.

9

J907861

LIFTING EYE

lifting, front

1шт.

10

J906440

LIFTING EYE

lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

13

J920497

ELBOW

CONNECTOR 90 degree, breather vent

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

15

J918167

TUBE,6.35 mm OD x 117.5 mm L

vent, air, Serial Range: -44808257

1шт.

16

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW 90 degree, compression, 1/4 tube O.D. x 1/8 inch PT, Start Serial: 44808257

1шт.

16

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW 90 degree, compression, 1/4 tube O.D. x 1/8 inch PT, Serial Range: -44808257

2шт.

17

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent, air, engine serial number 44808257 and after, Includes: Ref. 18

1шт.

18

222-153

SLEEVE,1/4" Tube

2шт.

19

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER compression, 1/4 tube O.D. x 1/8 inch PT, tube to thermostat housing, Start Serial: 44808257

1шт.
