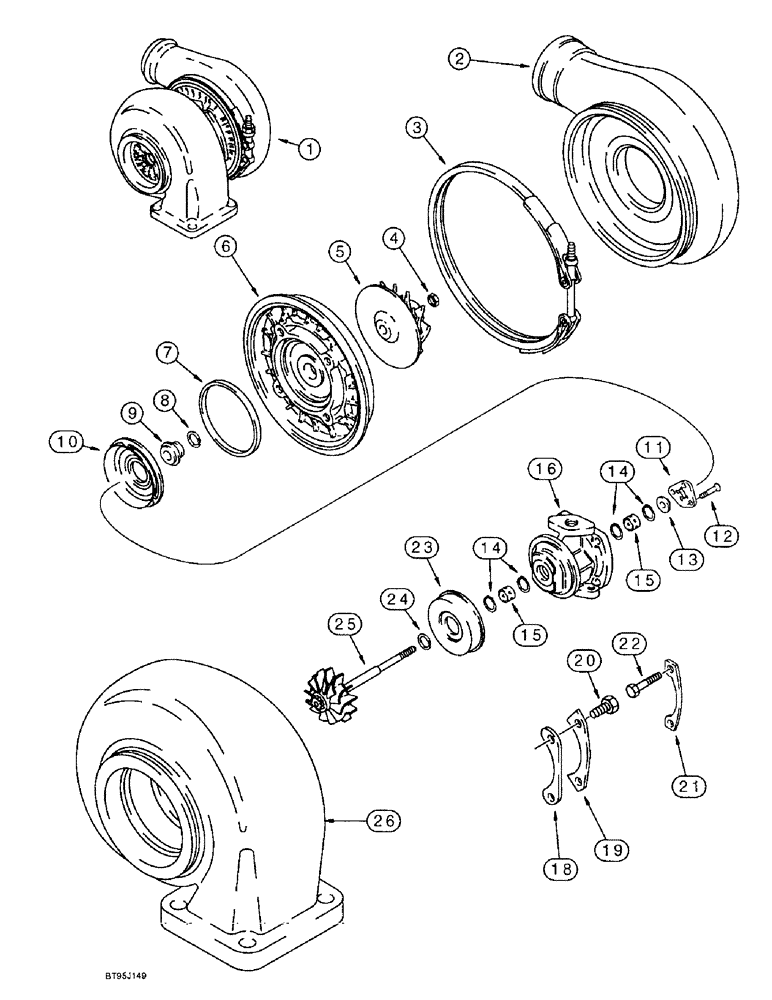

Запчасти Case IH 1666 (2-24) - TURBOCHARGER, 6T-830 ENGINE (01) - ENGINE

1

J919199

TURBOCHARGER

Turbocharger

1шт.

1

JR802303

REMAN-TURBOCHARGER

1666, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL split ring, oil slinger

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW flat head slotted

3шт.

Part of J545652 overhaul turbocharger kit

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING snap, bearing retaining

4шт.

Part of J545652 overhaul turbocharger kit

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE clamp, turbine housing

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex, retaining

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT hex, lock

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL ring, turbine

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING turbocharger

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER lock, not shown

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING sealing, not shown

1шт.

Part of J545652 overhaul turbocharger kit

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, includes all Refs. 4, 7, 8,11, 12, 14, 15, 19, 20, 22, 24, 27 and 28 replaces J904772 KIT

1шт.
