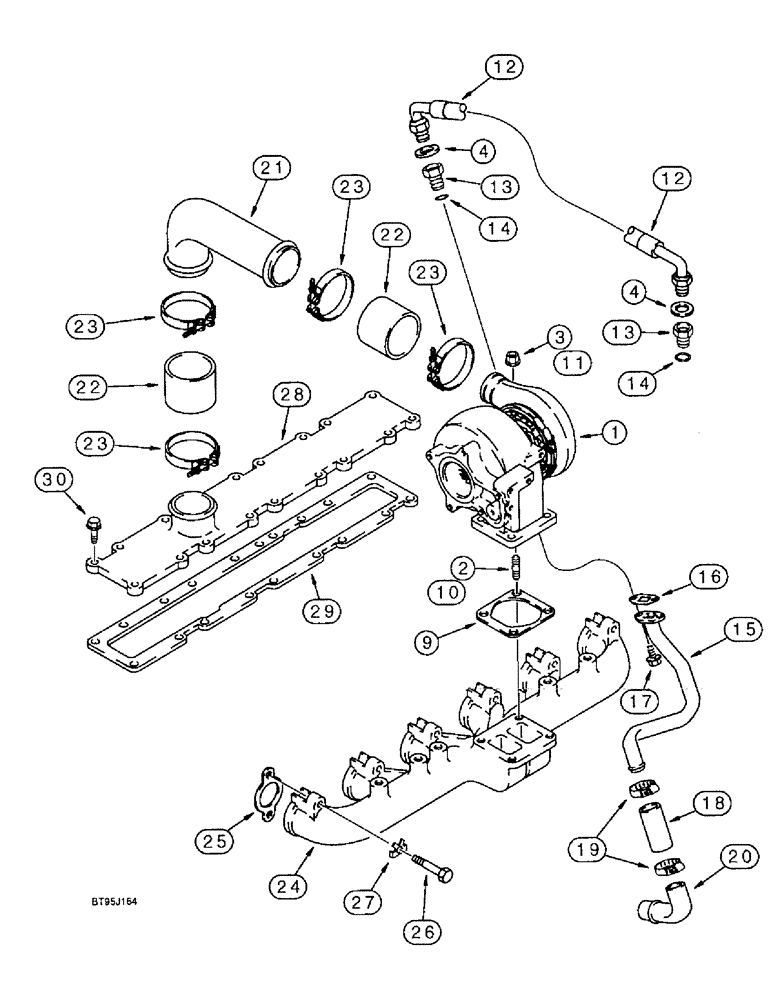

Запчасти Case IH 1666 (2-22) - TURBOCHARGER SYSTEM, 6T-830 ENGINE, MANIFOLDS, EXHAUST, INTAKE (01) - ENGINE

1

J919199

TURBOCHARGER

ASSEMBLY engine, new, parts list Fig. 2-24

1шт.

1

JR802303

REMAN-TURBOCHARGER

1666, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

3

J901961

NUT

hex, special, 10 mm - 1.25, used with Ref. 2 stud only, if used

4шт.

9

J911941

GASKET

mounting, turbocharger

1шт.

10

J818823

STUD

turbocharger mounting, used with Ref. 11 nut only, if used

4шт.

11

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, used with Ref. 10 stud only, if used

4шт.

12

J918562

HOSE

21-3/16 inch (538 mm) long, oil supply, turbocharger

1шт.

13

J919687

HYD CONNECTOR

ADAPTER female hex, special, includes Ref. 14

2шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

15

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

oil drain

1шт.

16

J914388

GASKET

turbo oil drain tube

1шт.

17

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

18

J903745

LARGE HOSE

HOSE,LARGE 3 inch (76 mm) long, turbocharger oil drain

1шт.

19

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

21

J906742

TUBE,63.5 mm OD

air, crossover

1шт.

22

J916529

TRANSMISSION SLEEVE

HOSE, 3 inch (76 mm) long, crossover tube

2шт.

23

J924386

COLLAR CLAMP

adjustable, special

4шт.

24

J906741

MANIFOLD

exhaust

1шт.

25

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick, replaces J921787

1шт.

26

J929537

BOLT

hex, special, exhaust manifold to cylinder head, replaces 814-100701

12шт.

27

J914708

LOCKING PLATE

12шт.

A77611

MANIFOLD

KIT intake, no longer available, order components seperately, Includes: Ref. 28 and 29

1шт.

28

J906737

COVER ASSY

intake manifold

1шт.

29

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake manifold cover to cylinder head

18шт.
