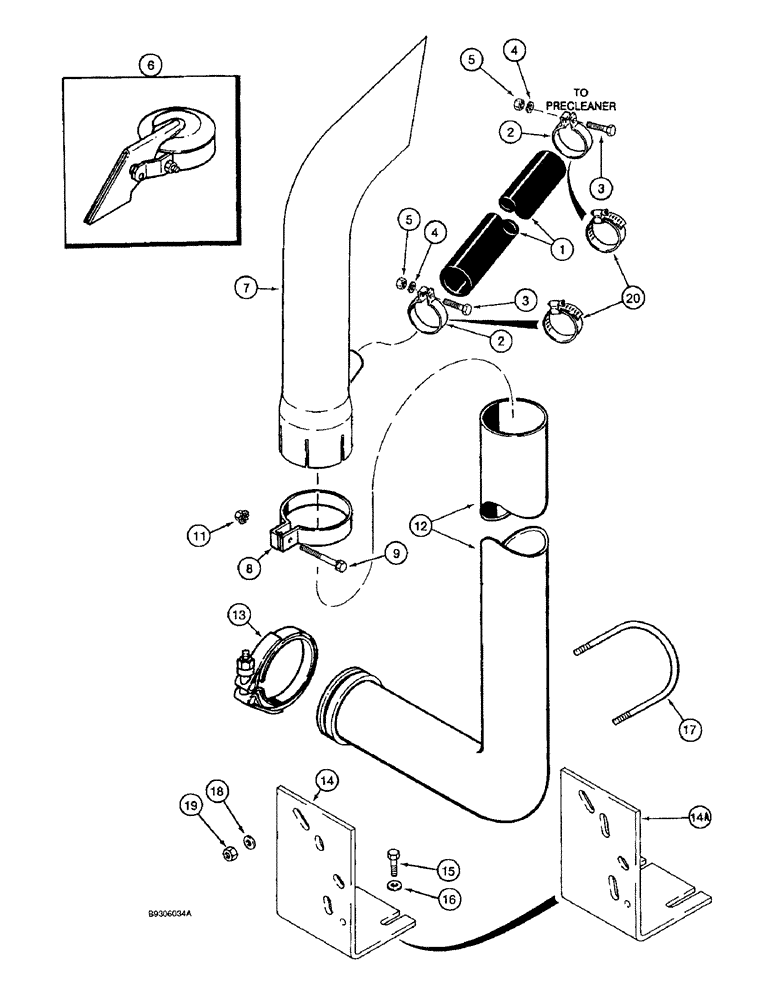

Запчасти Case IH 1666 (2-20) - EXHAUST SYSTEM (01) - ENGINE

1

117424A1

HOSE,1.25 mm ID x 254.00 mm

Cut From 407001R1 Bulk, Exhaust Aspirator, See This Figure

1шт.

2

1275854C1

CLAMP

aspirator hose, if used

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with 1275854C1 clamp

2шт.

4

492-11038

LOCK WASHER,3/8"

Used with 1275854C1 clamp

2шт.

5

425-106

NUT,3/8"-16, Cl 5

Used with 1275854C1 clamp

2шт.

6

1541960C2

CAP

exhaust pipe, weather, if used

1шт.

7

116706A1

TUBE,228.6, 203.2 mm Length

exhaust aspirator top

1шт.

8

1321280C2

CLAMP,92mm

exhaust pipe, elbow

1шт.

9

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.

12

116708A1

TUBE,88.77 mm OD, 491, 290 mm Length

exhaust aspirator, bottom

1шт.

13

A170807

CLAMP,102mm ID

exhaust tube retaining

1шт.

14

84569C5

ANGLE

BRACKET tube support, no longer available, order Ref. 14A, 84569C8

1шт.

14a

84569C8

SUPPORT TUBE

BRACKET tube support

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

16

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

17

S93558

U-BOLT

3/8 inch NC

1шт.

18

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

19

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

20

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj., if used

2шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

bulk, 1-1/4 (32) ID x 36 inch (914 mm) long

1шт.
