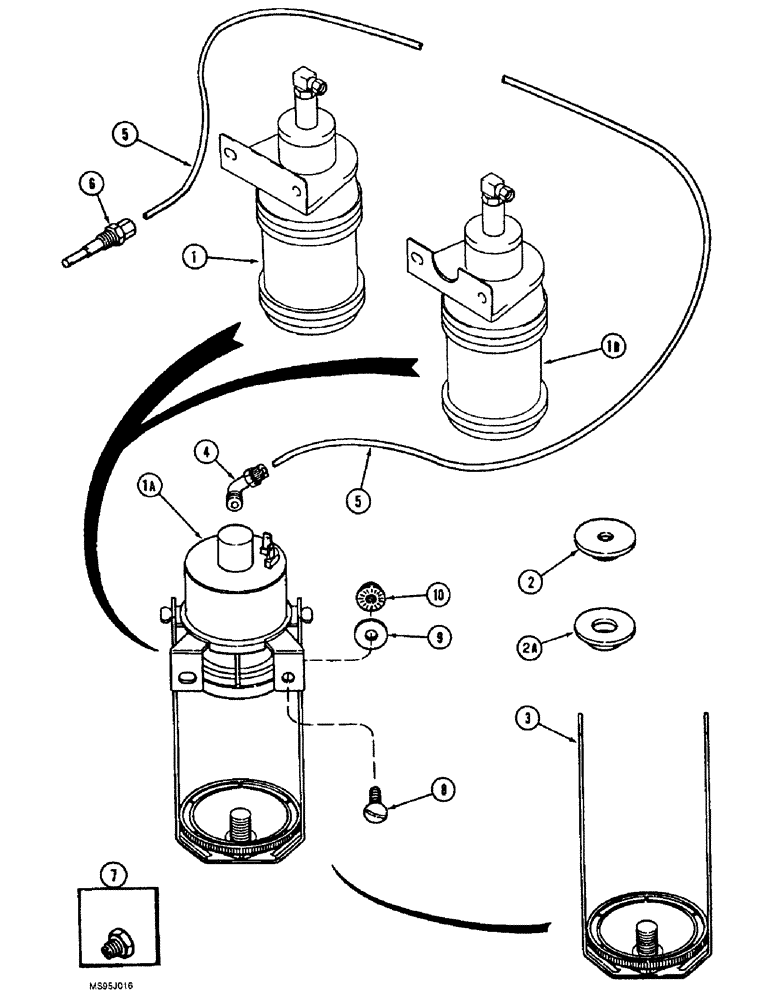

Запчасти Case IH 1666 (2-18) - ETHER STARTING SYSTEM (01) - ENGINE

1

185552A2

SOLENOID

ASSEMBLY ether injection, replaces A143381 and 185552A1

1шт.

1a

A143381

SOLENOID

ASSEMBLY ether injection, replaced by 185552A1 and 185552A2

1шт.

1b

185552A1

SOLENOID

ether injection, 12 volt, replaced by 185552A2, Includes: Ref. 2, 2A, and 3

1шт.

2

395686R1

GASKET

injector solenoid, 15/64 inch diameter, used with Ref. 1A only

1шт.

2a

1963571C1

GASKET

GASKET injector solenoid, 19/32 inch diameter, used with Ref. 1A only

1шт.

3

121851C1

RETAINER

CONTAINER ether start fluid, used with Ref. 1A only

1шт.

4

289970C91

FITTING

ELBOW 90 degree, special, 1/8-27 PT x 1/8 inch tube, used with Ref. 1A only

1шт.

5

A172361

TUBE

72 inch (1829 mm) long, cut from1954063CX bulk tube, solenoid to manifold, see this Figure

1шт.

6

A172900

NOZZLE CAP

ASSEMBLY atomizer

1шт.

7

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Used with Ref. 1A only

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

9

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

1954063CX

TUBE

bulk, 1/8 (3) O.D. x 1200 inch (30480 mm) long

1шт.
