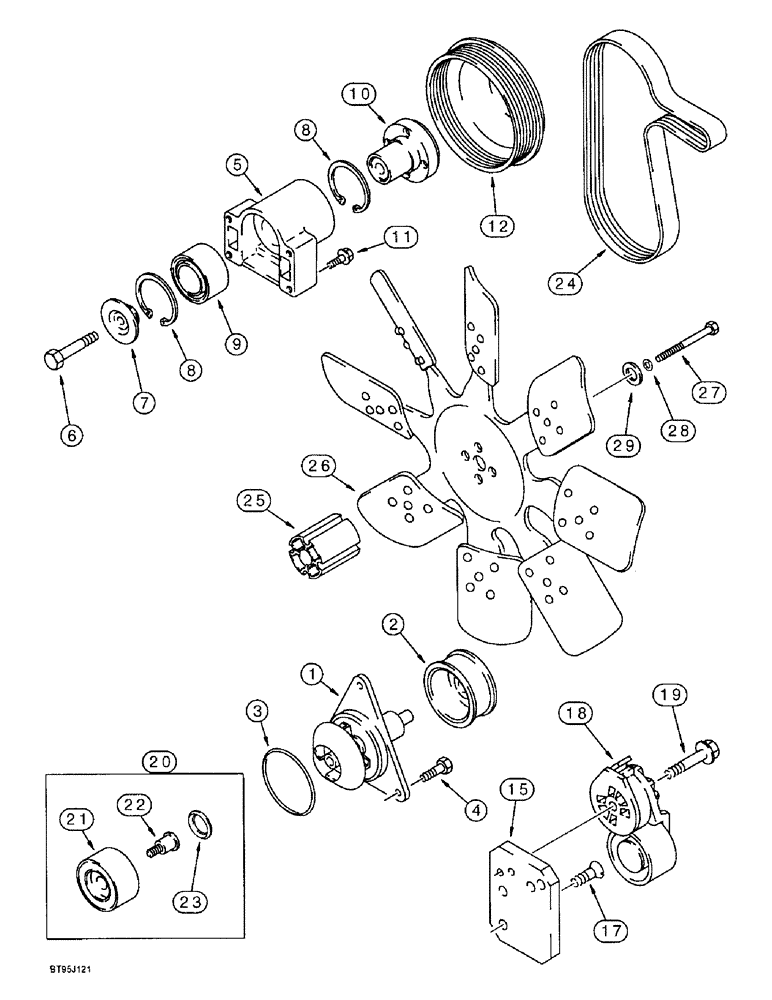

Запчасти Case IH 1666 (2-12) - WATER PUMP SYSTEM, 6T-830 ENGINE (01) - ENGINE

A77704

PUMP, WATER

KIT, includes ref. 1-3

1шт.

J800976R

REMAN-WATER PUMP

1666 6T-830 ENGINE (1/93-12/94), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

, Serial Range: pump-block

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

fan, includes ref. 6-10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

Fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

15

J925188

SUPPORT

BRACKET belt tensioner, replaces J911473

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

2шт.

18

J918944

BELT TENSIONER

belt

1шт.

19

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy, Belt tensioner to mounting bracket

1шт.

20

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of J918944, Ref. 18, Includes: Ref. 21-23

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.

24

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan Drive

1шт.

25

A184548

SPACER,Fan, 89/90mm Thk

fan, 90 mm long

1шт.

26

1547933C1

FAN

pulley, 650 mm O.D., part number stamped on fan blade

1шт.

27

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

4шт.

28

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

flat, 11 x 21 x 2.5 mm, hardened

4шт.

29

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

flat, 13/32 x 1-1/4 x 15/64 inch, hardened

4шт.
