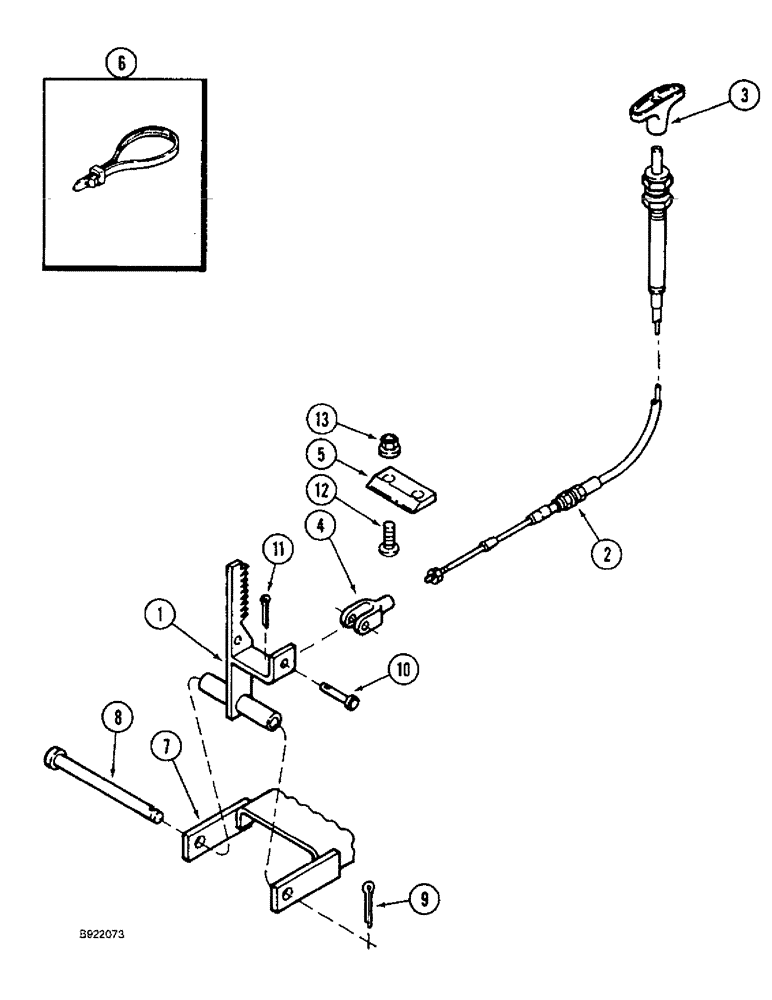

Запчасти Case IH 1666 (7-12) - PARKING BRAKE (5.1) - BRAKES

1

1277202C1

PLATE

SECTOR parking brake

1шт.

2

166149C91

CABLE

ASSY., parking brake, 125 in., Includes: Ref. 3

1шт.

3

170273C1

HANDLE

control, parking brake cable

1шт.

4

213-113

ADJUSTABLE CLEVIS,#10-32

adjustable, No. 10 NF parking brake cable, replaces 117824

1шт.

5

177802C1

BAR

parking brake ratchet

1шт.

6

702093C1

CABLE TIE

CABLE STRAP 3 in. maximum, parking brake cable

5шт.

7

REF

INSTRUCTION

SUPPORT, brake actuator, see parts list Fig. 7-06

1шт.

8

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

headed, 3/8 x 4-1/8 in.

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

10

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

hardened, 3/16 x 1-1/32 in.

1шт.

11

432-48

COTTER PIN,1/16" x 1/2"

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
