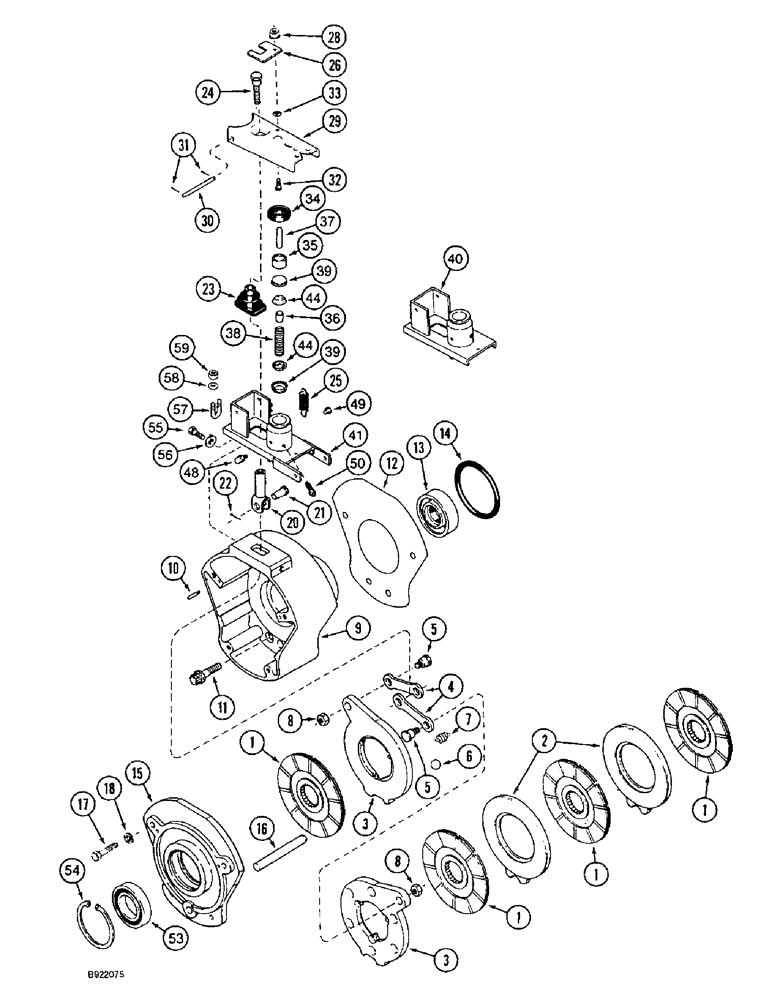

Запчасти Case IH 1666 (7-04) - MASTER BRAKES (5.1) - BRAKES

1

1349008C2

BRAKE DISC

DISC, BRAKE middle

8шт.

Included with the transmission assembly.

1шт.

2

1349009C2

BRAKE DISC

DISC, BRAKE intermediate

4шт.

Included with the transmission assembly.

1шт.

184202C93

DISC

ASSY., brake actuating, Includes: Ref. 3 thru 8

2шт.

Included with the transmission assembly.

1шт.

3

NSS

NOT SOLD SEPARAT

DISC, actuating

1шт.

Included with the transmission assembly.

1шт.

4

1276923C2

LINK

actuating

2шт.

Included with the transmission assembly.

1шт.

5

A41865

BOLT

link

2шт.

Included with the transmission assembly.

1шт.

6

211-1028

BALL,7/8" Dia

chrome alloy steel, 7/8 in., grade 24, replaces 17028R1

6шт.

Included with the transmission assembly.

1шт.

7

359859R2

SPRING

extension

3шт.

Included with the transmission assembly.

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

Included with the transmission assembly.

1шт.

9

1342950C1

HOUSING ASSY.

brake, Includes: Ref. 10

2шт.

Included with the transmission assembly.

1шт.

10

37-1516

DOWEL,5/16" x 1"

PIN, 5/16 x 1 in., hardened, replaces 20020R1

2шт.

Included with the transmission assembly.

1шт.

11

380-21028

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4", Full Thd

BOLT, 12 point flange, 5/8 NC x 1-3/4 in.

8шт.

Included with the transmission assembly.

1шт.

12

401898R1

SHIM

brake housing, 0.003 in. thick

1шт.

Included with the transmission assembly.

1шт.

12

401899R1

SHIM

brake housing, 0.005 in. thick

1шт.

Included with the transmission assembly.

1шт.

12

401900R1

SHIM

brake housing, 0.007 in. thick

1шт.

Included with the transmission assembly.

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

oil

2шт.

Included with the transmission assembly.

1шт.

14

238-5427

O-RING,0.275" Thk x 4.725" ID, -427, Cl 5, 75 Duro

2шт.

Included with the transmission assembly.

1шт.

15

1981196C2

COVER

ASSY., brake housing, Includes: Ref. 16

2шт.

Included with the transmission assembly.

1шт.

16

37-11496

DOWEL,7/8" x 6"

dowel, hardened, 7/8 x 6 in., replaces 28333R1

1шт.

Included with the transmission assembly.

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

Included with the transmission assembly.

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

Included with the transmission assembly.

1шт.

20

1321923C1

CLEVIS

YOKE, brake pull

2шт.

Included with the transmission assembly.

1шт.

21

27-10137

CLEVIS PIN,5/8" x 1 3/8"

clevis, 5/8 x 1-3/8 in.

2шт.

Included with the transmission assembly.

1шт.

22

432-816

COTTER PIN,1/8" x 1"

2шт.

Included with the transmission assembly.

1шт.

23

184321C1

COVER

BOOT brake housing

2шт.

24

1321973C1

ROD

brake pull

2шт.

25

312824R1

SPRING

brake lever return

2шт.

26

184282C2

BAR

brake adjustment

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

1277201C3

LEVER

brake

2шт.

30

1308992C1

PIN,9.53mm OD x 102mm L

brake lever

2шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

32

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

BOLT carriage, 1/4 NC x 3/4 in., grade 2

2шт.

33

136969C1

FASTENER

NUT push on type, 1/4 in., brake lever

2шт.

1329740C2

SUPPORT ASSY.

ACTUATOR, brake right hand

1шт.

1329739C2

SUPPORT ASSY.

ACTUATOR, brake left hand, Includes: Ref. 34 thru 50

1шт.

34

662620R1

COVER

BOOT

1шт.

Part included in wheel cylinder repair kit 1288942C92

1шт.

35

662616R1

PISTON

wheel cylinder

1шт.

Part included in wheel cylinder repair kit 1288942C92

1шт.

36

1281779C1

LARGE PIN

PIN, LARGE brake piston spacer

1шт.

38

84940C1

SPRING

wheel cylinder

1шт.

Part included in wheel cylinder repair kit 1288942C92

1шт.

39

51906H

CUP

wheel cylinder

2шт.

Part included in wheel cylinder repair kit 1288942C92

1шт.

37

184325C2

PLUNGER

PLUNGER, wheel cylinder

1шт.

40

NSS

NOT SOLD SEPARAT

SUPPORT actuator, left hand, order 1329740C2

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT actuator, left hand, order 1329739C2

1шт.

44

85105C1

EXPANDER

CUP, wheel cylinder

2шт.

Part included in wheel cylinder repair kit 1288942C92

1шт.

48

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, 7/16 - 20 flare x 1/8 in., PT

1шт.

49

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

50

660901R1

VALVE

bleeder

2шт.

53

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

ball, housing cover

2шт.

Included with the transmission assembly.

1шт.

54

184131C1

SNAP RING,#393, 4.234", Int

bearing retaining

2шт.

Included with the transmission assembly.

1шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

56

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 in.

4шт.

57

1327797C1

CLAMP

U BOLT, 1/4 NC x 1-1/4 in.

2шт.

58

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

flat, 9/32 x 1/2 x 1/16 in.

4шт.

59

231-4144

NUT,1/4"-20, GB

4шт.

1288942C92

KIT

repair, wheel cylinders, Includes: Ref. 34, 35, 38, 39 and 44

1шт.
