Артикул
Название
Примечание
Количество
1347257C1

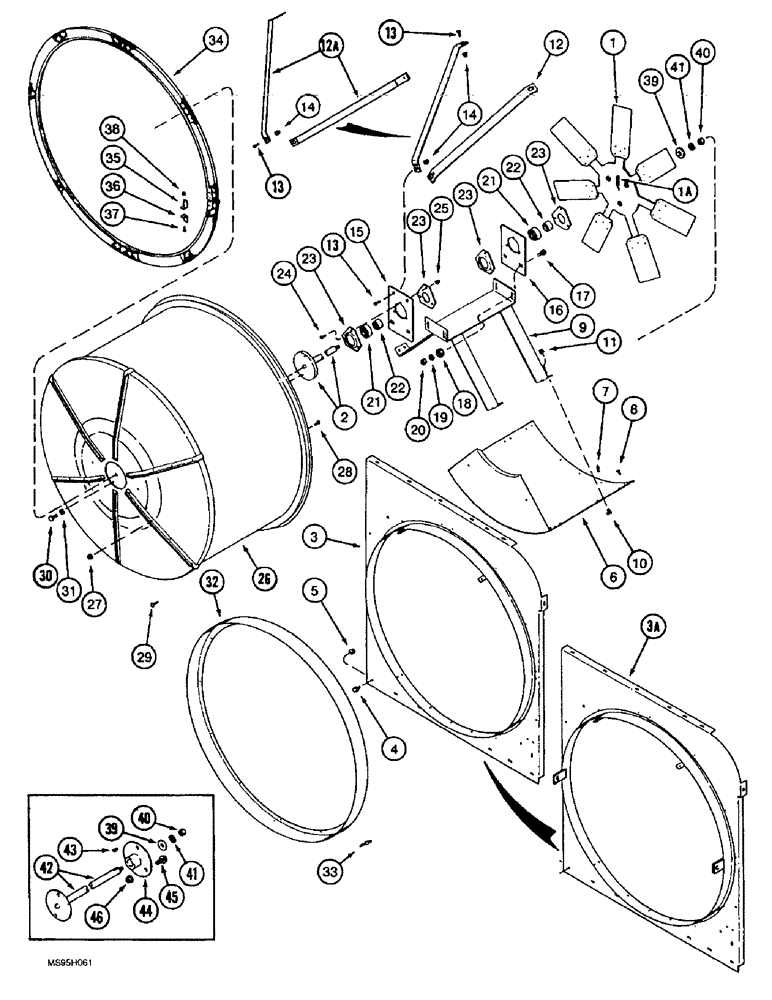

FAN,7 Blades, 685.8mm OD
ASSEMBLY rotary air screen, Includes: Ref. 1 and 1A
1шт.
1
1957272C2
FAN
rotary air screen
1шт.
1a
Q5024
KEY,3/16" Sq x 1", Par
Welded on
1шт.
2
1347255C1
SHAFT
fan, rotary air screen
1шт.
3
1317755C4
SUPPORT
rotary air screen, replaced by 1317755C6
1шт.
3a
1317755C6
ADAPTER
SUPPORT rotary air screen, fan, replaces 1317755C4
1шт.
4
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
17шт.
4
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
2шт.
5
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
19шт.
6
194224C1
BAFFLE ASSY.
rotary air screen
1шт.
7
151-558
RIVET,Pop, 3/16" x .450"
break mandrel, 3/16 x 1/2 inch
3шт.
8
104235
RIVET,FH, 3/16" x 1/2"
4шт.
9
194226C2
SUPPORT
bearing, lower
1шт.
10
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
slotted truss head, 1/4 NC x 1/2 inch
8шт.
12
194221C2
STAY
SUPPORT bearing, upper
2шт.
12a
175258A1
SUPPORT
rear bearing, round slot
2шт.
13
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
4шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
15
164605C1
LARGE PLATE
PLATE, LARGE SUPPORT bearing flange, rear
1шт.
16
164604C1
BAR
SUPPORT bearing flange, front
1шт.
17
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
4шт.
18
495-81112
WASHER,.344" x 3/4" x .120"
flat, 11/32 x 3/4 x 7/64 inch
4шт.
20
425-105
NUT,5/16"-18, G5
4шт.
21
455957R92
BEARING ASSY,19.05mm ID x 47mm OD x 14mm W
ball, shaft, rotary air screen
2шт.
22
455958R11
COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W
lock, bearing
2шт.
23
H333534
FLANGED BEARING
bearing
4шт.
24
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
6шт.
25
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
26
1977217C1
SIEVE
ASSEMBLY rotary screen, fine
1шт.
28
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
slotted truss head, 1/4 NC x 1/2 inch
12шт.
29
151-218
RIVET,Tr Hd, 3/16" x .281", Alum.
12шт.
30
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
2шт.
31
492-11038
LOCK WASHER,3/8"
2шт.
32
1338011C1
SEALING RING
RETAINER brush seal
1шт.
33
201946C1
RIVET,Pop, 3/16" x .325"
mandrel, steel, 3/16 diameter x 1/4 inch
12шт.
34
164615C92
BRUSH, COMMUTATOR
BRUSH ASSEMBLY rotary air screen, includes ref. 35-37
1шт.
35
164616C1
ANGLE
CLIP brush, short
1шт.
36
164617C1
ANGLE
CLIP brush, long
1шт.
37
470-11016
SCREW,Pan HD, #10 - 24 x 1"
machine, pan head slotted, No. 10 NC x 1 inch
1шт.
38
86625057
NUT,#10-24, GB
1шт.
1338452C1
SET OF PARTS
KIT repair, fan hub and shaft, includes ref. 39-46
1шт.
39
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
1шт.
40
125-10002
SPECIAL NUT,3/8"-16, G5, LH
1шт.
41
632019R1
LOCK WASHER,3/8"
L.H. twist 3/8"
1шт.
42
1968544C2
SHAFT ASSY.
rotary air screen fan
1шт.
43
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
1шт.
44
1338442C1
HUB ASSY.
rotary screen fan
1шт.
45
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
3шт.
46
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
3шт.
Выбрано товаров: 52
