Запчасти Case IH 1666 (9F-10) - STRAW CHOPPER, DRIVE (19) - STRAW SPREADER & CHOPPER

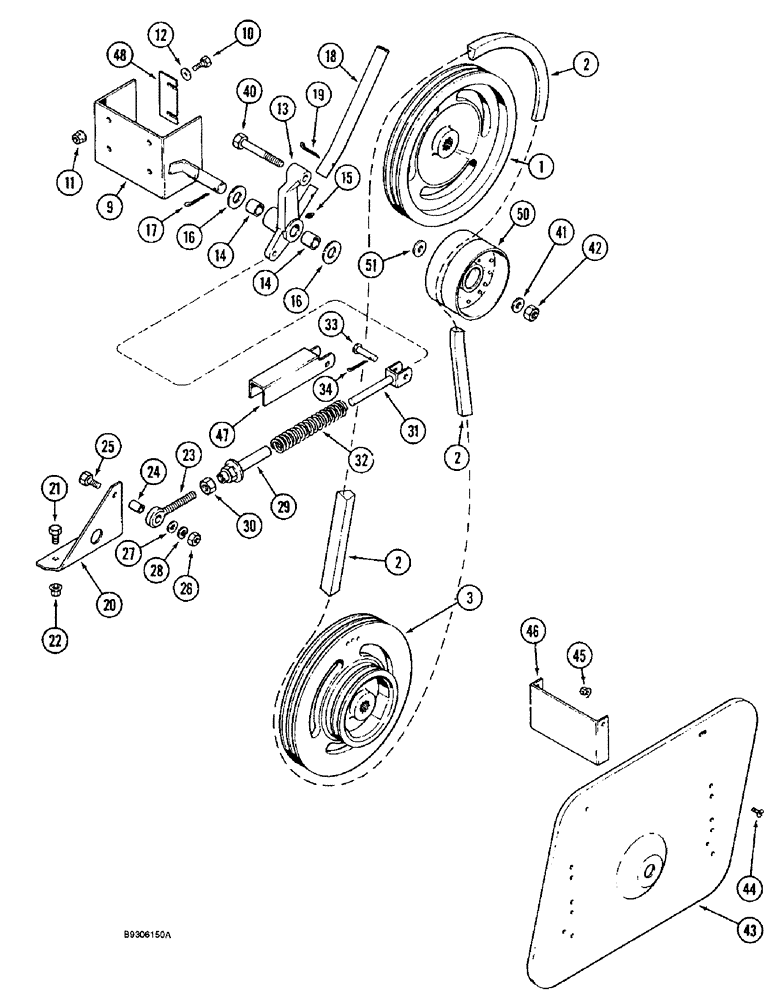

Схема запчастей Case IH 1666 - (9F-10) - STRAW CHOPPER, DRIVE (19) - STRAW SPREADER & CHOPPER
33
43
21
2
22
45
28
3
44
9
16
16
48
31
42
1
50
40
20
30
10
14
19
34
13
29
26
32
2
23
51
18
15
12
41
25
24
11
14
47
17
27
46
2

Артикул

Название

Примечание

Количество

1

1315264C1

PULLEY

chopper drive

1шт.

2

1315265C1

V-BELT,16.00 mm W x 2504.82 mm L

Chopper Drive

1шт.

3

1315264C1

PULLEY

chopper drive

1шт.

9

1315251C1

SUPPORT

idler arm pivot

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

13

1315249C91

LEVER

ASSEMBLY, idler arm, Includes: Ref. 14

1шт.

14

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

lever

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

16

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8")

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

18

1315248C1

TUBE,20.19 mm ID, 26.98 mm OD

LEVER idler arm

1шт.

19

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

20

1315357C1

SUPPORT

tension rod pivot

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

23

1315259C1

BOLT,3/4" - 10 x 113mm

tension rod eye, special

1шт.

24

617794R1

SPACER,13.5mm ID x 19.05mm OD x 27mm L

eye bolt

1шт.

25

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

26

329-108

NUT,1/2"-13, G8

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

28

392-21050

LOCK WASHER,1/2"

1/2"

1шт.

29

1315260C1

BOLT

CONNECTOR tension rod

1шт.

30

425-1012

NUT,3/4"-10, G5

1шт.

31

1315256C1

ROD

tension, slider

1шт.

32

1315247C1

SPRING

idler tension

1шт.

33

14145H

CLEVIS PIN,1/2" x 2.094"

1шт.

34

432-816

COTTER PIN,1/8" x 1"

1шт.

40

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

41

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

42

232-41110

NUT,5/8"-11, GC

1шт.

43

194759C6

GUARD

SHIELD fan drive

1шт.

44

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

8шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

46

181142C1

SUPPORT

chopper drive shield

2шт.

47

1315364C1

CHANNEL

tension rod lock

1шт.

48

1302709C1

SHIM,50.8mm OD x 0.66mm Thk

idler pivot support

1шт.

50

1345048C1

PULLEY

drive, idler

1шт.

51

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, 32/32 x 1-5/16 x 3/32 inch, hardened

1шт.

Выбрано товаров: 40
