(9F-06) - STRAW SPREADER, SHIELDS

Запчасти Case IH 1666 (9F-06) - STRAW SPREADER, SHIELDS (19) - STRAW SPREADER & CHOPPER

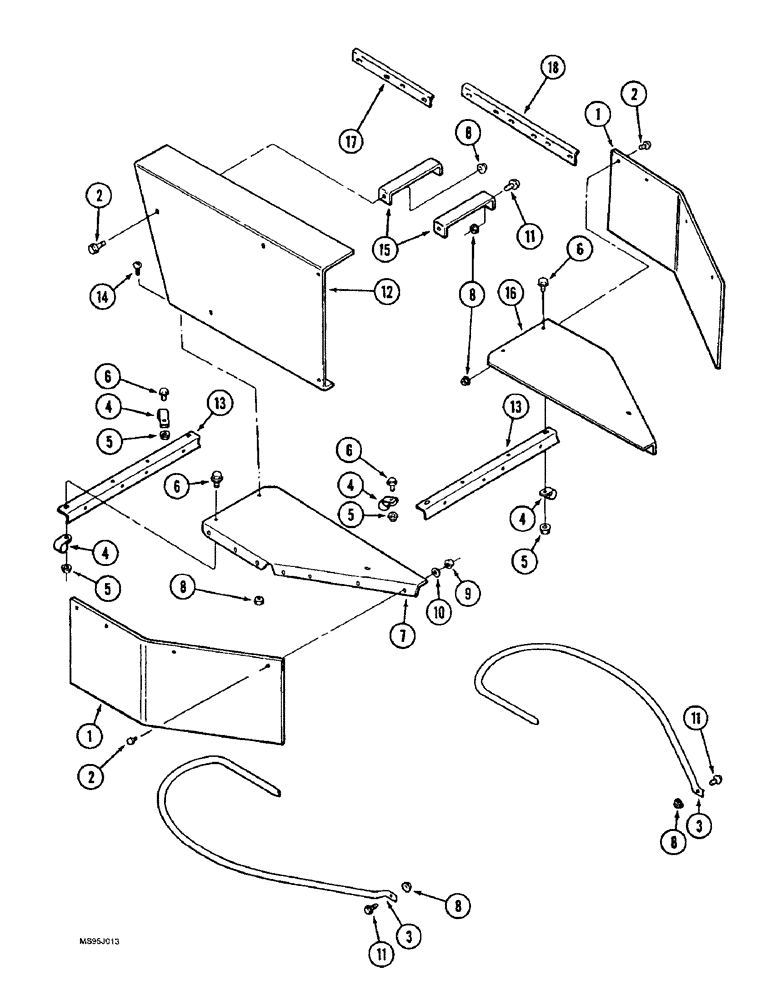

Схема запчастей Case IH 1666 - (9F-06) - STRAW SPREADER, SHIELDS (19) - STRAW SPREADER & CHOPPER
2
6
5
7
8
13
18
3
11
2
4
5
8
10
8
4
17
9
13
8
1
14
1
5
6
5
8
11
3
15
6
16
11
4
6
2
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1308916C2

SHIELD

SHIELD side, straw spreader

2шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

3

1308912C3

PIPE

shield, replaces 1308912C2

2шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Retaining

4шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

7

1308915C4

SUPPORT

straw spreader, right hand shield, replaces 1308915C1 and 1308915C2

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

9

232-4115

LOCK NUT,5/16"-18, GC

8шт.

10

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

8шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

1309121C3

SUPPORT

drive shield

1шт.

13

1308913C1

SUPPORT

straw, spreader shield

2шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

15

1309354C1

SUPPORT

CHANNEL drive shield

2шт.

16

1308914C4

SUPPORT

straw spreader, left hand shield replaces 1308914C1

1шт.

17

140286A1

STRIP

STRIP steel, shield, front

2шт.

18

140287A1

STRIP

STRIP steel, shield, rear

2шт.
