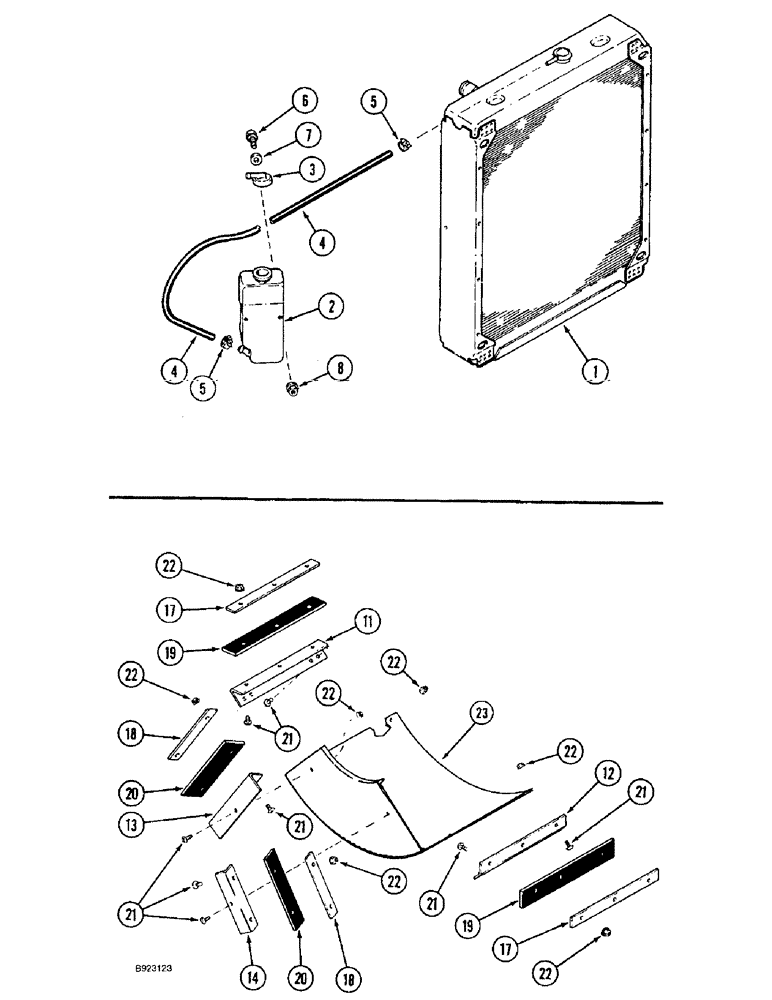

Запчасти Case IH 1666 (2-04) - COOLANT RECOVERY SYSTEM, ROTARY AIR SCREEN BAFFLE SEALS (01) - ENGINE

1

A189067

RADIATOR

cooling system, for mounting, see Fig. 2-2, coolant recovery system

1шт.

2

437703C2

TANK

RESERVOIR coolant recovery system

1шт.

3

437702C1

CAP

reservoir tank, coolant recovery system

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HOSE,LARGE Reservoir to radiator, Coolant recovery system

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Coolant recovery system

2шт.

6

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

Coolant Recovery System

3шт.

7

495-81109

WASHER,.281" x 1" x .048"

flat, 9/32 x 1 x 3/64 inch, coolant recovery system

3шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Coolant recovery system

3шт.

11

1977159C1

SUPPORT

baffle, left hand, rotary air screen baffle seals

1шт.

12

1977160C1

SUPPORT

baffle, right hand, rotary air screen baffle seals

1шт.

13

1977161C1

SUPPORT

baffle, left hand rear, rotary air screen baffle seals

1шт.

14

1977162C1

SUPPORT

baffle, right hand rear, rotary air screen baffle seals

1шт.

17

1977163C1

LARGE PLATE

PLATE, LARGE STRIP, 11-13/16 inch (300 mm) long, baffle side, rotary air screen baffle seals

2шт.

18

1977164C1

SEALING STRIP

6-1/2 inch (165 mm) long, baffle rear, rotary air screen baffle seals

2шт.

19

1977165C1

SEAL

12 inch (304 mm ) long, baffle, rotary air screen baffle seals

2шт.

20

1977166C1

SEAL

8 inch (203 mm) long, baffle, rotary air screen baffle seals

2шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

Rotary air screen baffle seals

12шт.

22

231-4144

NUT,1/4"-20, GB

Rotary air screen baffle seals

12шт.

23

194224C1

BAFFLE ASSY.

rotary air screen, parts list Fig. 2-8, Ref. 6, rotary air screen baffle seals

1шт.
