Запчасти Case IH 1666 (9E-24) - UNLOADER, UPPER AUGER (17) - GRAIN TANK & UNLOADER

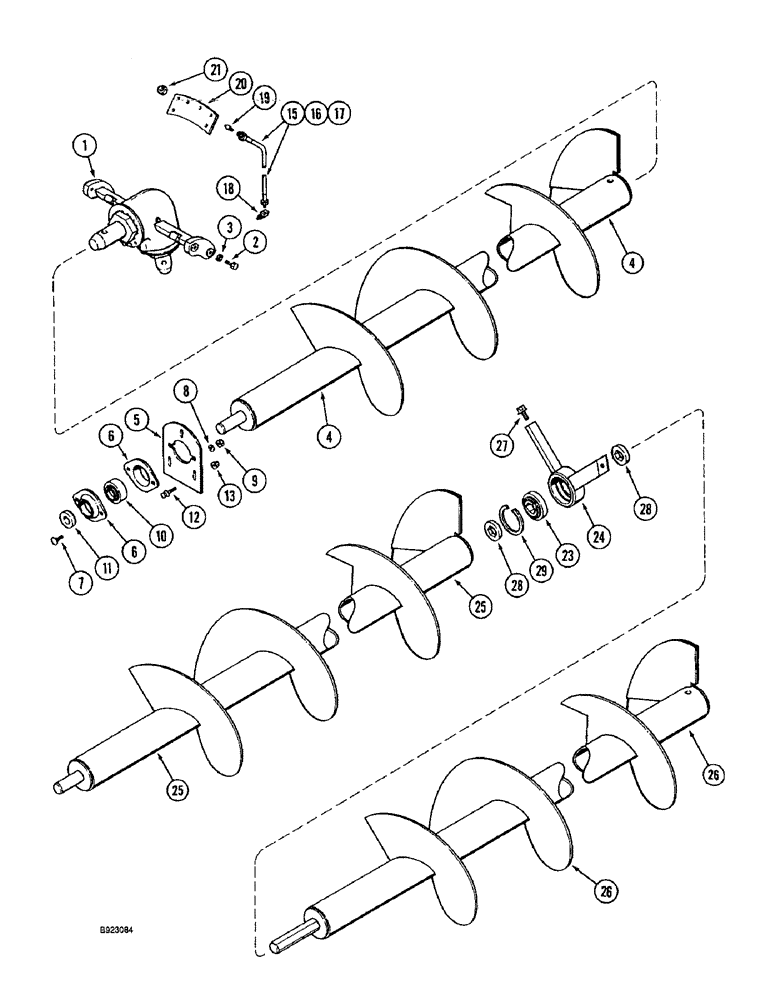

Схема запчастей Case IH 1666 - (9E-24) - UNLOADER, UPPER AUGER (17) - GRAIN TANK & UNLOADER
7
4
24
20
25
26
19
25
18
9
28
2
6
12
28
3
10
11
16
27
8
23
21
6
29
15
1
4
13
5
17
26

Артикул

Название

Примечание

Количество

1

1347351C1

HOUSING

ASSEMBLY, upper gear, unloader parts list Fig. 9E-32

1шт.

1347351C2R

REMAN-GEARBOX

1666 (1/93-12/94), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

1989215C4

AUGER unloader, one piece, 136 inch, replaces 1989215C3

1шт.

4

1347499C4

AUGER unloader, one piece, 172 inch, replaces 1347499C3

1шт.

5

182838C1

SUPPORT

bearing, outer

1шт.

6

50591

FLANGE,52mm

bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

ball, unloader, outer

1шт.

11

564853R11

COLLAR

locking, bearing, outer

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

937779R91

HOSE,1/8" ID x 22" L

Grease

2шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

Grease

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

Grease

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING grease, 45 degree, special

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

20

134744C1

RING

PLATE mounting, lubrication hose

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

special hose adapter

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

ball, unloader, split auger only

1шт.

24

1317859C1

SUPPORT

bearing, unloader, split auger only

1шт.

25

1317680C2

AUGER

unloader, rear split, 172 inch, replaces 1317680C1

1шт.

25

1321147C2

AUGER

unloader, rear split, 208 inch, replaces 1321147C1

1шт.

26

1989388C2

AUGER

unloader, front split, 172 inch, replaces 1989388C1

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

28

1277949C1

SPACER

split auger, unloader only

4шт.

29

360936R1

RING

snap, auger bearing

1шт.

Выбрано товаров: 31
