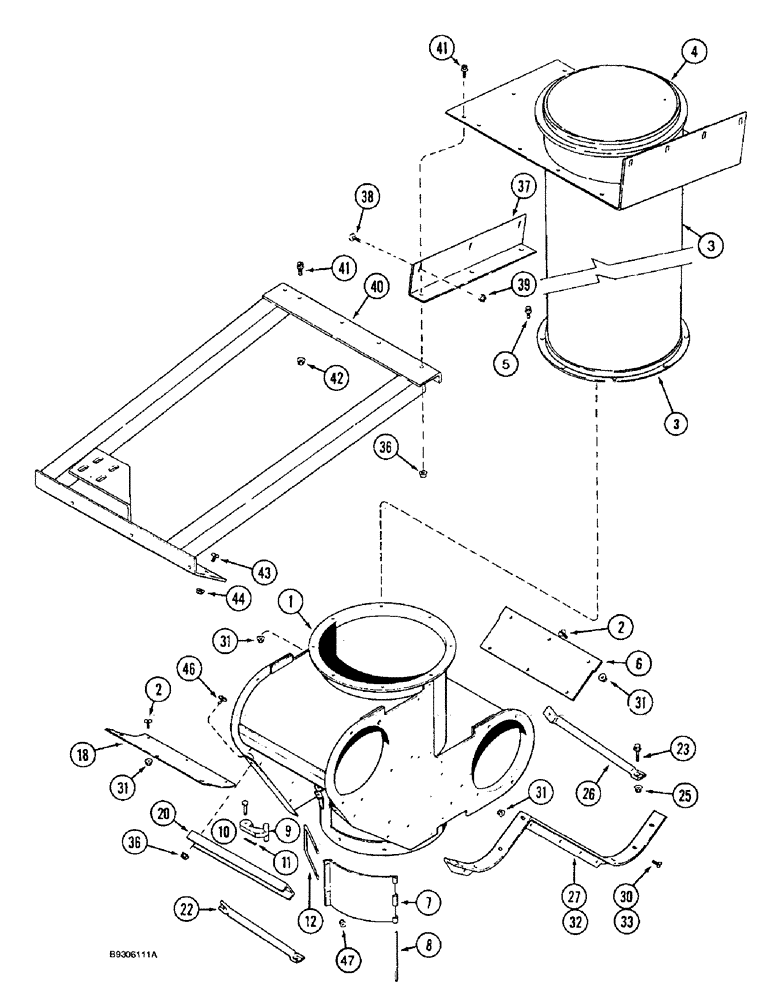

Запчасти Case IH 1666 (9E-20) - LOWER GRAIN TANK, UNLOADER HOUSING (17) - GRAIN TANK & UNLOADER

1

192475C3

HOUSING

unloader, lower

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

1338394C1

TUBE

ASSEMBLY, auger vertical, Includes: Ref. 4

1шт.

4

178134C2

RING

tube, upper

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

6

191087C1

PLATE

COVER unloader housing, front, bottom

1шт.

7

1970539C1

FLAP

DOOR auger, lower, with decal

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD pivot door

1шт.

9

155909C1

LATCH

door

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

headed, 1/4 x 1-1/4 inch, grade 2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT "U" type

1шт.

18

191110C1

COVER

COVER unloader housing, rear, bottom

1шт.

20

192834C1

CHANNEL

support

1шт.

22

192848C1

ROD

SUPPORT rear housing

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

192847C1

ROD

SUPPORT front housing

1шт.

27

192828C1

SUPPORT

housing, left hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

58шт.

32

192829C1

SUPPORT

housing, right hand

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

36

231-5146

FLANGE NUT,3/8"-16

9шт.

37

1338393C2

ANGLE

SUPPORT vertical auger

1шт.

38

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

self locking, truss head, Phillips, special, 3/4 NC x 1 inch

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

1338388C1

SUPPORT

unloader cylinder

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

42

231-5146

FLANGE NUT,3/8"-16

3шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

7шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

47

231-1444

NUT,1/4"-20, GB

2шт.
