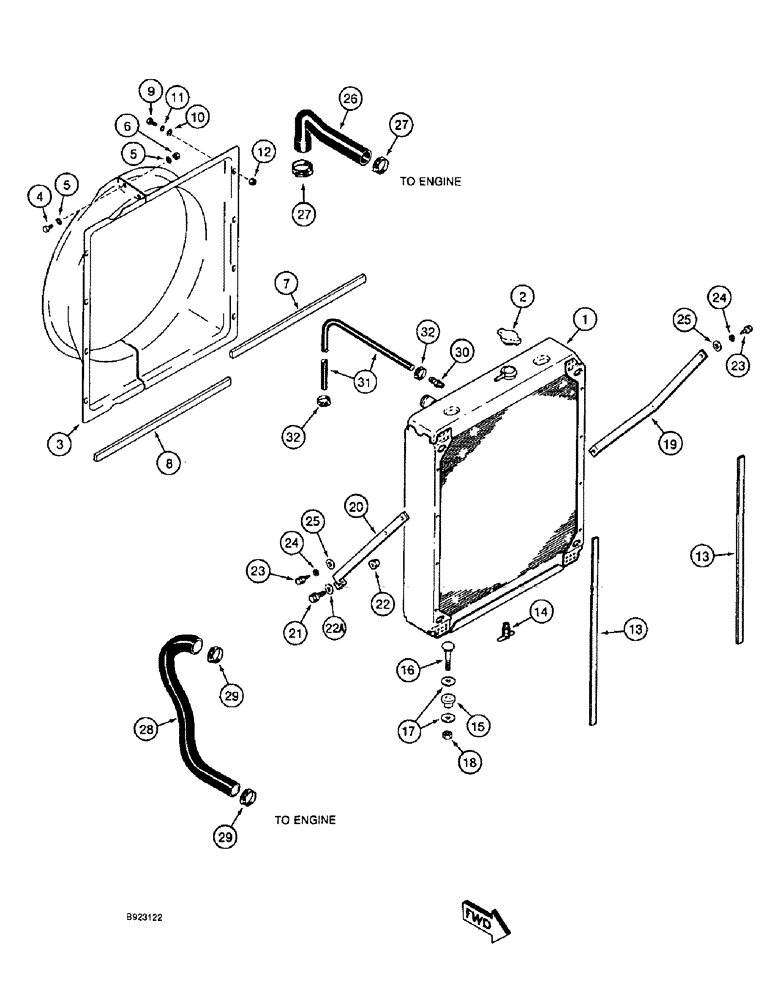

Запчасти Case IH 1666 (2-02) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

A189067

RADIATOR

cooling system

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

106201A1

ORIFICE RING

SHROUD fan, includes both halves, Includes: Ref. 4, 5, and 6

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x17 x 2 mm, hardened

8шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking 8 mm - 1.25, class 10.9

4шт.

7

1970457C2

SEAL

31 inch (787 mm) long, cut from 1974883CX bulk seal radiator to shroud, upper, see below

1шт.

8

1979476C1

SEAL

28-3/4 inch (730 mm) long, cut from 1974883CX bulk seal radiator to shroud, lower, see below

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

10

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

8шт.

11

492-11031

LOCK WASHER,5/16"

If used

8шт.

12

488837C1

SPRING NUT

speed, 5/16 inch NC, replaces 131-636

8шт.

13

1970536C1

SEAL

foam, adhesive backed 34-1/2 inch (875 mm) long, cut from 195917C1 bulk seal radiator to air chute, see below

2шт.

14

86982771

VALVE

drain, 1/4 inch PT

1шт.

15

R29799

SHOCK ABSORBER

INSULATOR rubber, radiator mounting

2шт.

16

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

2шт.

17

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

18

231-1447

NUT,7/16"-14, GB

2шт.

19

1329863C1

SUPPORT

radiator, left hand

1шт.

20

1541868C1

SUPPORT

radiator, right hand

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

22a

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

2шт.

26

84549C2

RADIATOR HOSE,50.40 mm ID, 56.00 mm ID x 400.00 mm

Engine outlet, Upper

1шт.

27

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

2шт.

28

1979382C1

LARGE HOSE

HOSE,LARGE engine inlet, radiator, lower

1шт.

29

214-3248

HOSE CLAMP,57mm - 79mm

Adj.

2шт.

30

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight, Radiator top tank vent

1шт.

31

1960764C1

RADIATOR HOSE,9.50 mm ID x 560.00 mm, SAE 20R3

Radiator vent to engine

1шт.

32

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Adjustable

2шт.

1974883CX

SEAL

bulk, adhesive backed 1/2 (13) x 1-1/2 (38) x 600 inch (15240 mm) long

1шт.

195917C1

GASKET

SEAL bulk, foam, adhesive backed 600 inch (15240 mm) long

1шт.
