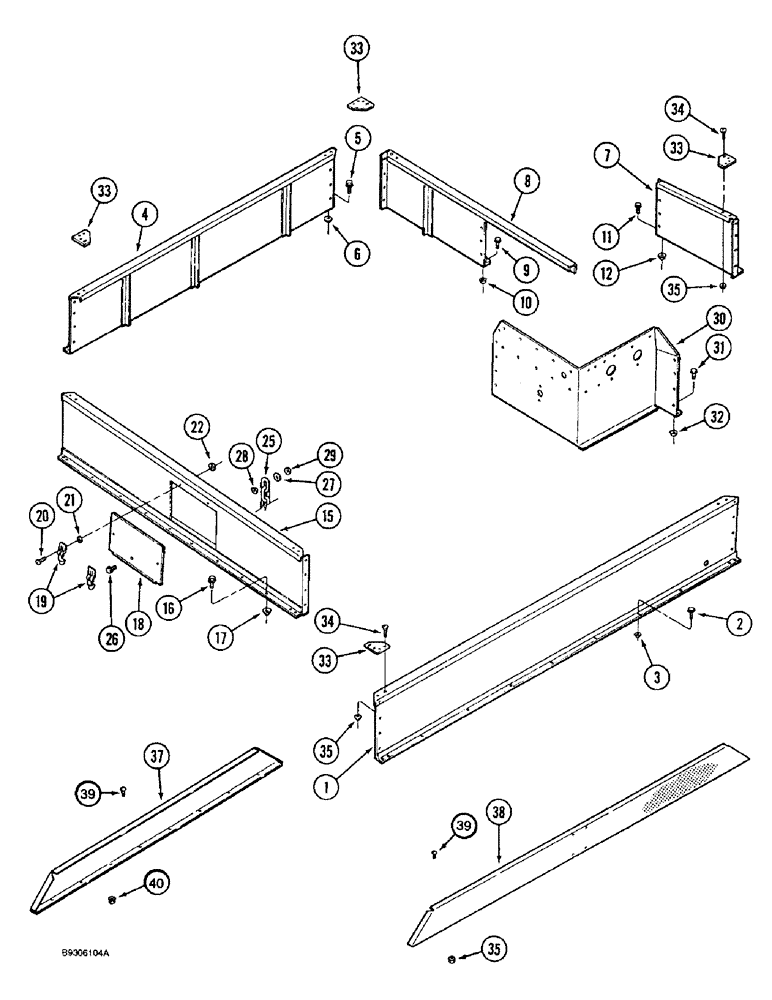

Запчасти Case IH 1666 (9E-04) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

1327651C6

EXTENSION

SUPPORT grain tank, front

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

23шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

4

1327590C3

SHIELD

EXTENSION grain tank, rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

19шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

7

1321813C1

GUARD

EXTENSION grain tank, left hand front

1шт.

8

1321810C1

EXTENSION

grain tank, left hand rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

12

231-5146

FLANGE NUT,3/8"-16

5шт.

15

1327639C1

PROTECTION PLATE

EXTENSION grain tank, right hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

1327644C2

PLATE

DOOR extension

1шт.

19

167800C1

CLIP

door retaining clip

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

latch

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

2шт.

30

1317644C2

SUPPORT

center extension

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

33

1321757C1

PLATE

BAR extension

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

37

183157C2

SUPPORT

front extension grain tank, rice only

1шт.

38

183276C2

SUPPORT

rear extension grain tank, rice only

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

15шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.
