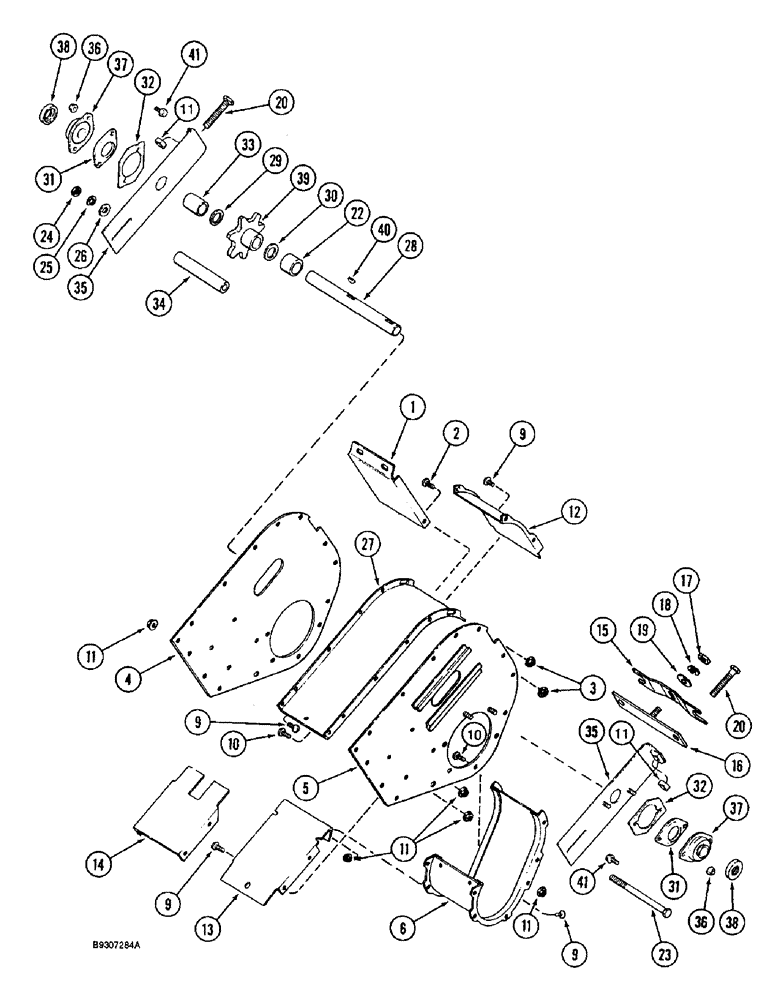

Запчасти Case IH 1666 (9D-32) - TAILINGS ELEVATOR, HEAD (16) - GRAIN ELEVATORS & AUGERS

1

195201C1

SUPPORT

upper

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

BOLT hex flange, 5/16 NC x 1-1/4 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

181366C1

SIDE PLATE

COVER head, left hand

1шт.

5

181367C1

SIDE PLATE

COVER head, right hand

1шт.

6

188119C1

TROUGH

head

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

24шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

36шт.

12

191776C1

COVER

COVER head

1шт.

13

191782C1

SUPPORT

COVER head, lower

1шт.

14

181327C1

BOTTOM

COVER head, lower

1шт.

15

181376C1

CLAMP

tightener

1шт.

16

181375C1

SUPPORT

BAR tightener

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

667486R1

BOLT

BOLT hex

2шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket, RH

1шт.

23

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

BOLT hex, 5/16 NC x 7 inch, grade 2

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

492-11031

LOCK WASHER,5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

27

191783C1

TOP COVER

COVER head

1шт.

28

191785C1

SHAFT

head

1шт.

29

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

31

50591

FLANGE,52mm

bearing

2шт.

32

1979640C2

LARGE PLATE

PLATE, LARGE SPACER bearing flange

2шт.

33

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket, LH

1шт.

34

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Sprocket, RH

1шт.

35

181364C1

SUPPORT

shaft

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

37

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball

2шт.

38

455102R21

COLLAR

locking, bearing, includes set screw

2шт.

39

168683C1

SPROCKET

drive train conveyor

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.
