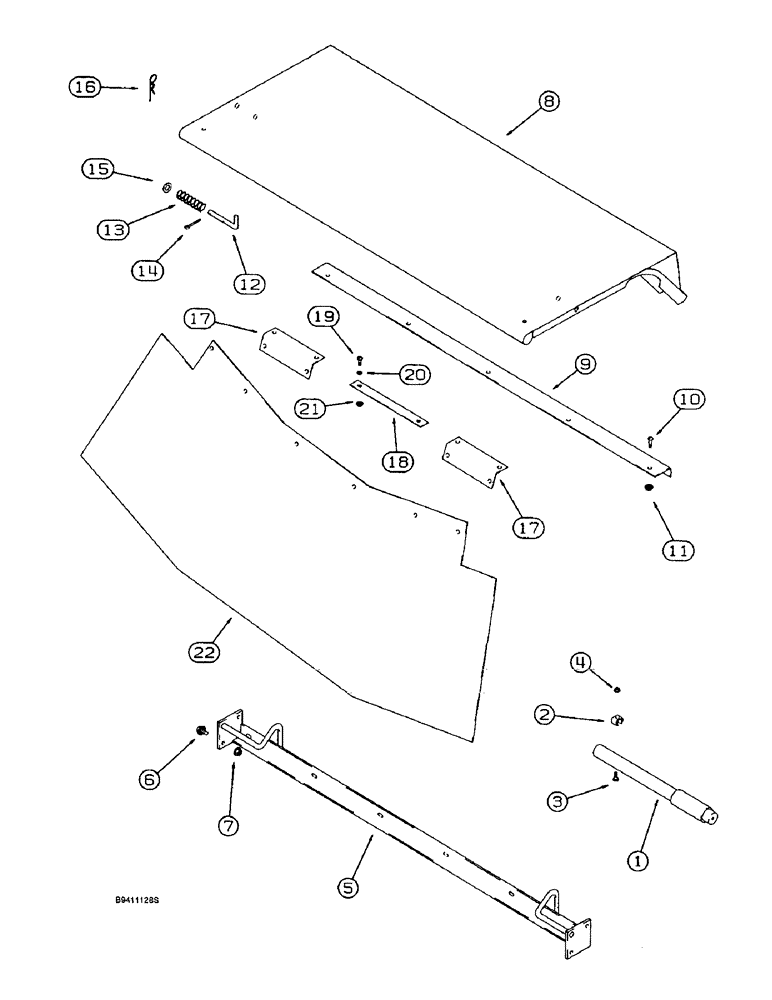

Запчасти Case IH 1666 (9D-28) - CLEANING SHOE DOOR AND SHIELDS, MODELS WITH STRAW AND CHAFF (16) - GRAIN ELEVATORS & AUGERS

1

106743A1

HANDLE

extension

1шт.

2

106744A1

CLIP

retainer, handle extension

2шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips No. 10 NC x 1/2 inch

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

126835A1

SUPPORT

dribble sheet

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

123291A2

DOOR

cleaning shoe

1шт.

9

126836A1

ANGLE BAR

HINGE door

1шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

12

186736C3

ROD

PIN latch

2шт.

13

540815R2

SPRING

PIN latch

2шт.

14

432-612

COTTER PIN,3/32" x 3/4"

2шт.

15

495-51041

WASHER,3/8"

flat, 13/32 x 47/64 x 1/16 inch

2шт.

16

586591R1

COTTER PIN

hair

2шт.

17

137576A2

SUPPORT

shield

2шт.

18

137527A1

SUPPORT

strip

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

20

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

6шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

122639A3

GUARD

SHIELD cleaning, shoe door

1шт.
