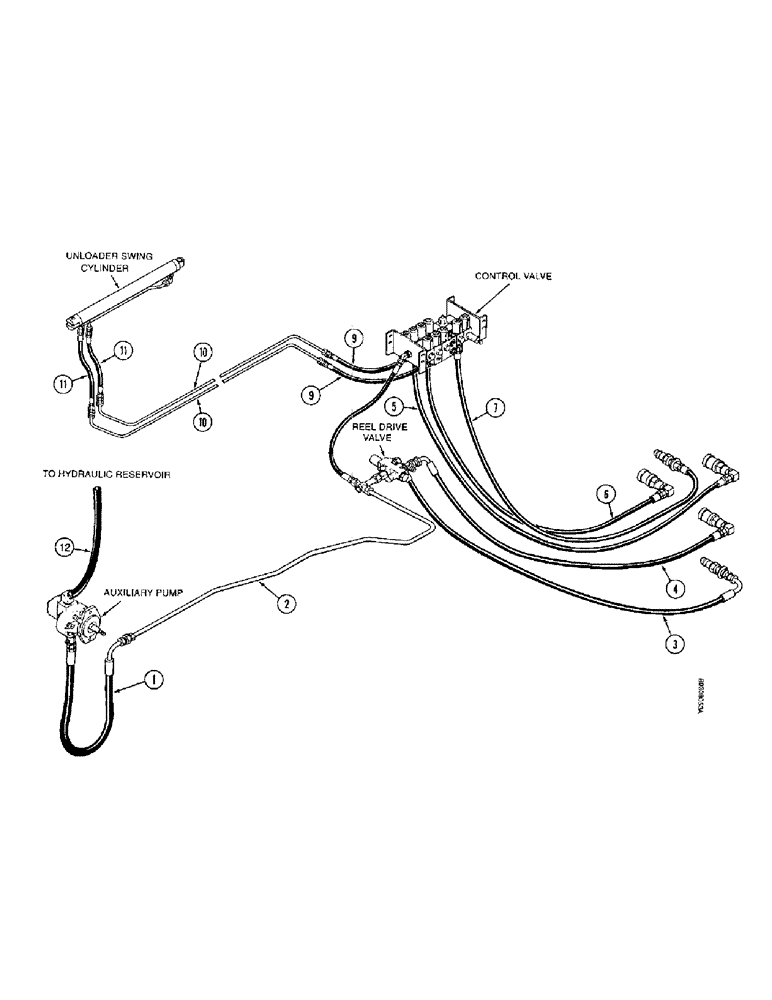

Запчасти Case IH 1666 (1-34) - PICTORIAL INDEX, REEL HYDRAULICS (00) - PICTORIAL INDEX

1

Auxiliary Pump To Reel Valve Hose, Page 8-53

1шт.

2

Reel Drive Valve Supply Tube, Page 8-53

1шт.

3

Reel Motor Supply Hose, Page 8-53

1шт.

4

Reel Motor Return Hose, Page 8-53

1шт.

5

Reel Lift Hose, Page 8-61

1шт.

6

Reel Fore Hose, Page 8-61

1шт.

7

Reel Aft Hose, Page 8-61

1шт.

8

Feeder Clutch Valve Hose, Page 8-63

1шт.

9

Unloader Swing Cylinder Hoses, Page 8-75

1шт.

10

Unloader Swing Cylinder Tubes, Page 8-75

1шт.

11

Unloader Swing Cylinder Hoses, Page 8-75

1шт.

12

Reel Drive Suction Hose, Page 8-27

1шт.
