Запчасти Case IH 1666 (9D-22) - INCLINED DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

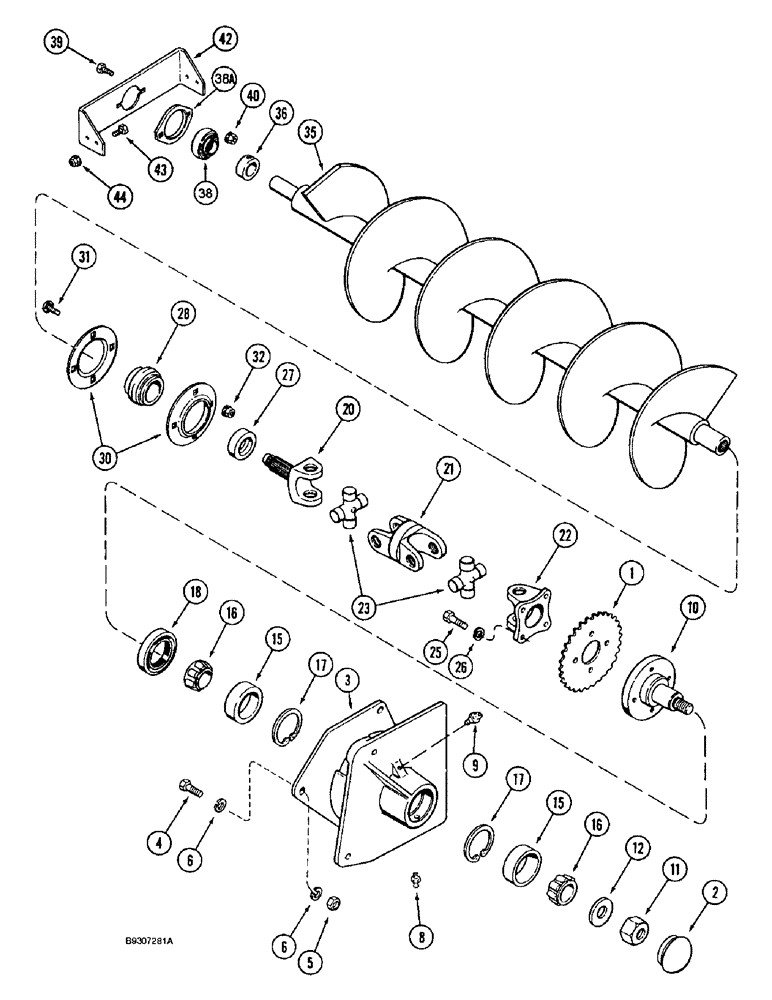

Схема запчастей Case IH 1666 - (9D-22) - INCLINED DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS
43
2
31
10
18
30
1
25
15
12
3
38a
42
28
32
16
4
16
15
38
21
26
6
11
44
35
39
17
8
22
27
40
17
23
5
6
36
9
20

Артикул

Название

Примечание

Количество

1

1321039C1

SPROCKET

driven auger

1шт.

2

453771R1

PLUG

CAP housing, drive housing

1шт.

3

1321020C1

HOUSING

drive

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

FITTING housing, 1/8 inch

1шт.

10

1321021C1

SHAFT

auger drive

1шт.

11

185413C1

LOCK NUT

hex, self locking, special, 7/8 inch NC

1шт.

12

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

flat, 29/32 x 2-3/64 x 1-1/64 inch

1шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

CONE tapered roller

2шт.

16

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

tapered roller

2шт.

17

100-21256

SNAP RING,2.562", Int, #256

2шт.

18

380200R92

OIL SEAL

oil housing

1шт.

1321055C91

UNIVERSAL JOINT

ASSEMBLY, auger drive, Includes: Ref. 20 thru 23

1шт.

20

1321056C1

YOKE

YOKE shaft

1шт.

21

1321057C1

JOINT

YOKE center

1шт.

22

1321058C1

YOKE

YOKE flange

1шт.

23

1321059C91

U-JOINT SPIDER

KIT journal and bearing

2шт.

25

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

BOLT hex, 7/16 NC x 1-1/2 inch, grade 8

4шт.

26

492-11044

LOCK WASHER,7/16"

4шт.

27

517645R11

COLLAR

locking, with set screw

1шт.

28

611583R91

BALL BEARING

ball, auger

1шт.

30

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

bearing

2шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

35

1968853C2

AUGER

delivery

1шт.

36

455102R21

COLLAR

locking, bearing, includes set screw

1шт.

38

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball, auger

1шт.

38a

50591

FLANGE,52mm

bearing

2шт.

39

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

42

1994833C1

BAR

support

1шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

Выбрано товаров: 36
