Запчасти Case IH 1666 (9D-16) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

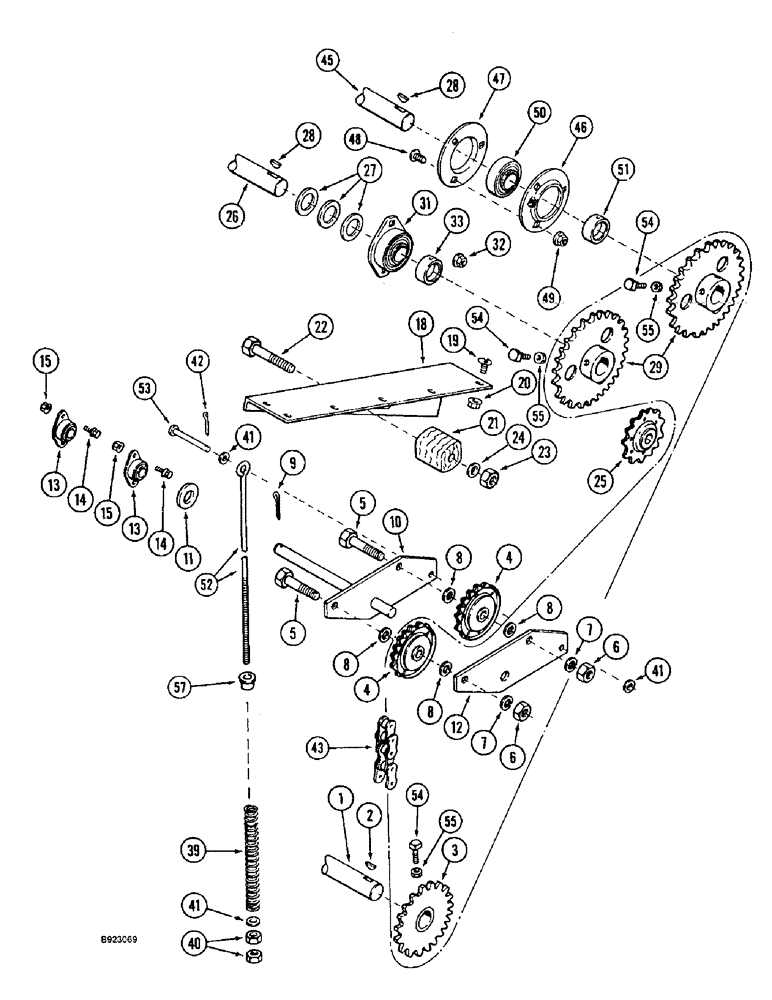

Схема запчастей Case IH 1666 - (9D-16) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
21
41
48
11
27
2
5
22
5
10
8
7
55
20
6
41
55
13
47
42
32
53
55
3
49
1
51
29
54
24
45
31
7
52
28
23
14
8
8
8
4
4
12
6
9
41
39
43
33
26
13
19
14
54
15
50
54
28
18
15
40
25
46
57

Артикул

Название

Примечание

Количество

1

1321347C1

SHAFT

elevator drive

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

drive, 25 teeth

2шт.

4

631905R91

SPROCKET

idler drive

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

BOLT hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

10

1345064C1

SUPPORT

idler sprocket, pivot tightener

1шт.

11

495-81041

WASHER,25/32" x 1 1/2" x .060"

flat, 25/32 x 1-1/2 x 1/16

1шт.

12

1345066C1

PLATE

tightener support

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

pivot

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

1317476C3

ANGLE BAR

stiffener, block replaces 1317476C2

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

21

582018R1

BLOCK

tightener

2шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

232-41110

NUT,5/8"-11, GC

2шт.

24

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

2шт.

25

1319759C1

DRIVE SPROCKET

idler, horizontal

1шт.

26

1317429C1

SHAFT

Head, sprocket elevator

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

29

1317412C1

SPROCKET

headshaft, one used on inclined elevator

2шт.

29

1321039C1

SPROCKET

driven, auger, used on inclined elevator

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

auger, right headshaft

2шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

bearing, with set screw

2шт.

39

523677R1

SPRING

tightener

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

4шт.

42

432-612

COTTER PIN,3/32" x 3/4"

1шт.

43

1321308C91

CHAIN (AG)

drive, 165 inch long, use 259 links of 1791D bulk chain, (3) 241-1315 connecting links and (2) 241-1115 roller links, horizontal delivery auger elevator

1шт.

Use 259 links of 1791D chain, (3) connecting links of 1310D and (2) roller links of 1309D

1шт.

43

1321307C91

CHAIN (AG)

ASSEMBLY, drive 153-3/4 inch long, use 241 links of 1792D chain, (3) 241-1315 connector links and (2) 241-1115 roller links inclined delivery auger elevator

1шт.

Use 241 links of 1792D chain, 3 connector links of 1310D and 2 roller links of 1309D

1шт.

45

1318912C3

AUGER

delivery, horizontal parts list Fig. 9D-2

1шт.

46

670375R11

FLANGE

FLANGE bearing, horizontal delivery auger elevator

1шт.

47

939461R1

FLANGE

horizontal, delivery auger elevator

1шт.

48

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch horizontal delivery auger elevator

3шт.

49

231-5146

FLANGE NUT,3/8"-16

Horizontal delivery auger elevator

3шт.

50

156011C92

BALL BEARING

ball, horizontal delivery auger elevator

1шт.

51

557995R11

COLLAR

bearing, with set screw, horizontal delivery auger elevator

1шт.

52

1345005C1

BOLT,3/8" - 16 x 815mm

BOLT, EYE ROD chain tightener

1шт.

53

427-6240

CLEVIS PIN,9.53mm OD x 61.11mm L

clevis, 3/8 x 2-13/32 inch, hardened

1шт.

54

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

set, square head, 3/8 NC x 1-1/4 inch, cup point

4шт.

55

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

57

S113843

BUSHING,9.65mm ID x 15.75mm OD x 15.75mm L

eyebolt

1шт.
