Запчасти Case IH 1666 (9D-12) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

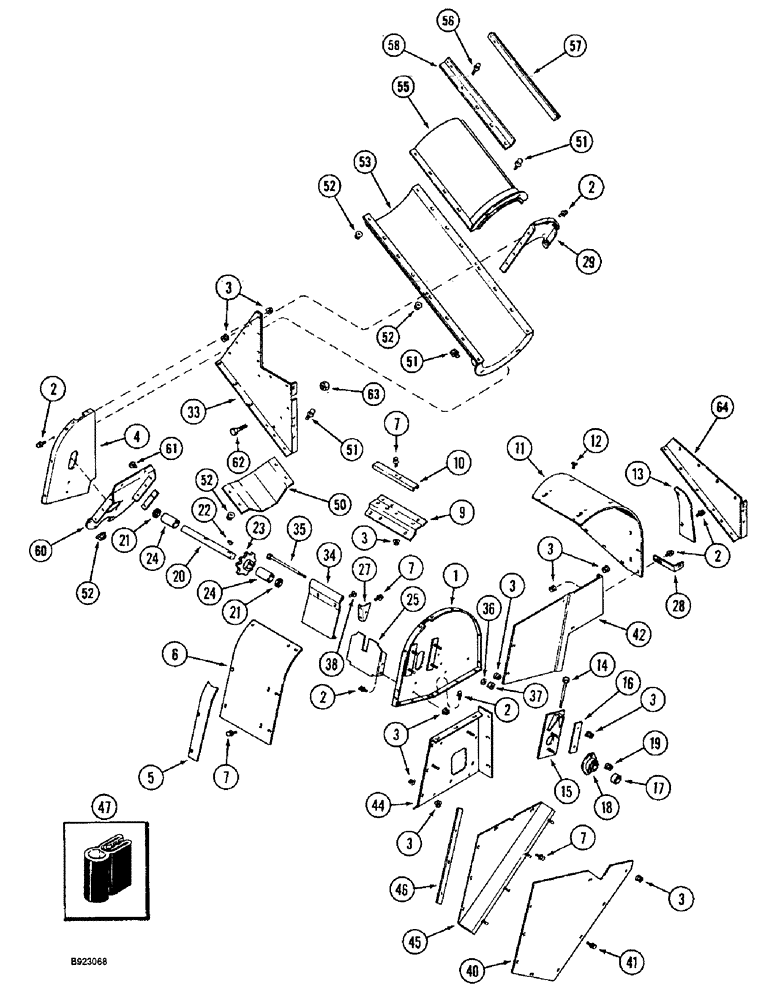

Схема запчастей Case IH 1666 - (9D-12) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS
51
45
12
3
38
1
20
56
52
47
22
25
21
23
50
61
3
14
3
24
63
7
3
18
27
6
51
19
2
3
29
3
52
7
33
46
16
42
41
60
44
2
57
64
17
36
21
62
5
2
2
3
53
34
15
7
37
35
7
4
58
3
13
2
52
9
11
52
40
51
28
10
55
24

Артикул

Название

Примечание

Количество

1

1319908C1

SIDE PLATE

SIDE elevator head

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

53шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

76шт.

4

1319901C1

SIDE PLATE

SIDE elevator head, left hand

1шт.

5

1321232C1

PLATE

sealing, rear

1шт.

6

1319942C1

COVER

rear, elevator head

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

37шт.

9

1319959C1

SUPPORT

tightener, conveyor

1шт.

10

1317474C1

CHANNEL

lock, tightener

1шт.

11

1319943C1

PLATE

COVER head, front

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

13

1321231C1

PLATE

sealing, front

1шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

hex, special, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

headshaft

2шт.

16

1310040C1

BAR

guide headshaft

4шт.

17

557995R11

COLLAR

bearing, with set screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

auger, right headshaft

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317429C1

SHAFT

Headshaft sprocket

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

23

1317192C1

SPROCKET

drive headshaft

1шт.

24

1317193C2

SPACER

sprocket

3шт.

25

1317222C1

PLATE

deflector extension, bottom

1шт.

27

1321553C1

BRACKET

support

1шт.

28

1321832C1

BRACKET

front cover head

1шт.

29

121370A1

PLATE

side, left hand front, includes decal

1шт.

33

1321551C2

SUPPORT

PANEL rear support

1шт.

34

1319952C1

PLATE

SECTION cut off

1шт.

35

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

BOLT hex, 5/16 NC x 7 inch, grade 2

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

40

1321154C1

PANEL

side, right hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

auger

1шт.

44

1321060C1

SUPPORT

mounting, auger

1шт.

45

1321496C1

SUPPORT

side panel, left hand

1шт.

46

1321155C1

SPACER

spacer

1шт.

47

1321262C1

SEAL

flanged, head

2шт.

48

1321554C1

PLATE

BAR filler

1шт.

50

1321556C1

COVER

U joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

53

1321557C2

TUBE,887 mm Length

trough, lower

1шт.

55

1321560C2

TROUGH

trough, upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

57

1321568C3

ANGLE

BRACKET support, front

1шт.

58

1321569C3

ANGLE

BRACKET support, rear

1шт.

60

1979134C1

SUPPORT

PLATE auger, bearing

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

63

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

64

1321552C2

SUPPORT

PLATE side, front

1шт.

Выбрано товаров: 54
