Запчасти Case IH 1666 (9D-06) - GRAIN ELEVATOR, HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS

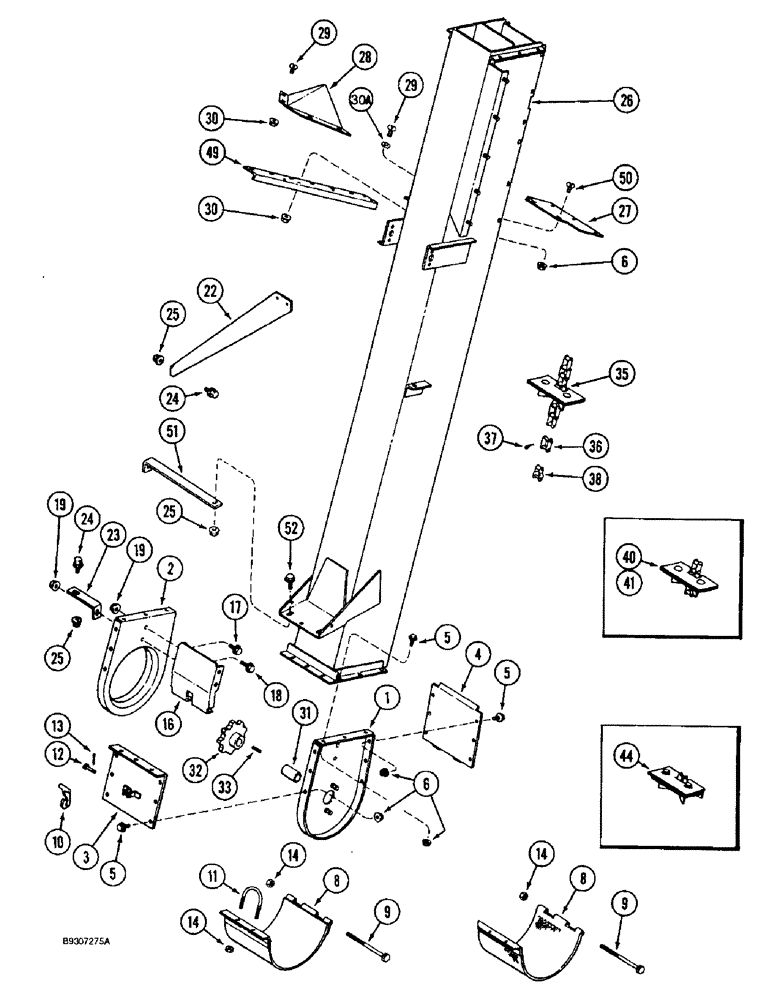

Схема запчастей Case IH 1666 - (9D-06) - GRAIN ELEVATOR, HOUSING AND BOOT (16) - GRAIN ELEVATORS & AUGERS
14
19
50
31
40
19
5
14
24
12
8
14
49
35
9
28
41
24
4
44
8
32
1
27
6
33
2
13
22
51
36
17
5
10
16
52
3
25
5
9
6
30
25
25
18
30a
26
11
29
23
30
37
38
29

Артикул

Название

Примечание

Количество

1

1318585C2

SIDE PLATE

SIDE boot, outer

1шт.

2

1317673C2

BASE

SIDE boot, inner

1шт.

3

1317271C1

COVER

boot, rear

1шт.

4

1317273C1

COVER

boot, front

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

8

1317276C1

DOOR

boot, non perforated

1шт.

8

1317841C1

DOOR

boot, perforated

1шт.

9

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

BOLT hex, 5/16 NC x 1-1/2 inch

1шт.

10

155909C1

LATCH

door

1шт.

11

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U, latch, 5/16 inch NC

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

headed, 1/4 x 1-1/4 inch, grade 2

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

14

232-4115

LOCK NUT,5/16"-18, GC

3шт.

16

1317270C1

GUARD

DEFLECTOR grain, bottom

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

1шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

22

1317362C4

SUPPORT

BRACKET lower, replaces 1317362C3

1шт.

23

1327667C1

SUPPORT

elevator

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

231-5146

FLANGE NUT,3/8"-16

7шт.

26

1317376C4

HOUSING

elevator

1шт.

27

1317688C1

PLATE

seal

1шт.

28

1317698C1

PLATE

SUPPORT rear seal

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

16шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

30a

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch

7шт.

31

1317193C2

SPACER

sprocket

3шт.

32

1317192C1

SPROCKET

drive

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

35

1321334C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY, Includes: Ref. 36 thru 41

1шт.

36

241-15113

LINK,41.4mm Pitch

single pitch, No. C550, 1-5/8 inch

1шт.

37

23442R1

PIN,2.36mm OD

roller, S type No. 550 chain

1шт.

38

241-18113

LINK,41.4mm Pitch

offset, single pitch No. C550, 1-5/8 inch

1шт.

40

1317613C92

PALLET

FLIGHT ASSEMBLY, conveyor, rubber

1шт.

41

241-12113

LINK,Chain, 41.4mm Pitch

roller, single pitch

2шт.

44

1321443C92

STEEL FLIGHT

ASSEMBLY, conveyor, steel, Includes: Flight, bolt, washer, and nut

1шт.

1317480C2

RUBBER FLIGHT

conveyor

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

232-4136

LOCK NUT,3/8"-16, GC

2шт.

49

1317493C1

BRACKET

ANGLE tank bottom stiffener, left hand

1шт.

50

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

51

1317625C1

SUPPORT

elevator housing, lower

1шт.

52

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

Выбрано товаров: 46
