Запчасти Case IH 1666 (9D-04) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

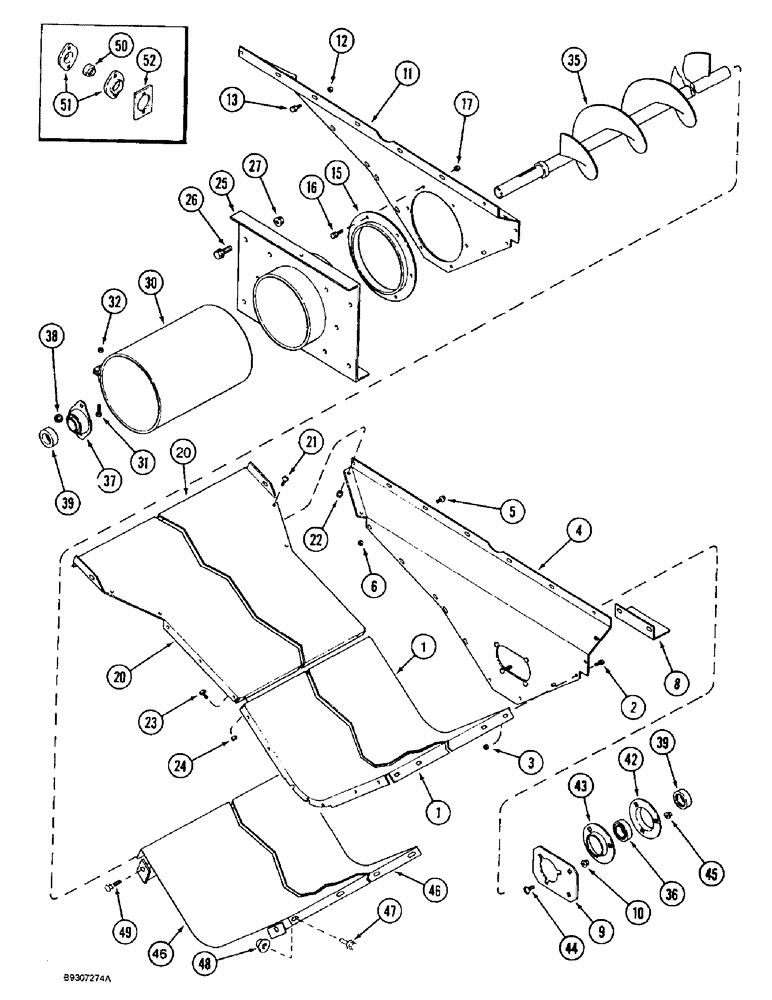

Схема запчастей Case IH 1666 - (9D-04) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
9
6
21
20
8
4
30
13
15
5
1
2
1
35
5
11
31
47
46
22
20
52
27
37
17
43
38
45
48
26
32
39
23
36
50
46
49
3
12
42
39
25
24
44
10
16

Артикул

Название

Примечание

Количество

1

1541821C1

TROUGH

clean grain, perforated

1шт.

1

1541638C1

TROUGH

clean grain, non perforated

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with 1541638C1

12шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Used with 1541821C1

10шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

4

1541635C1

SUPPORT

trough, left hand

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

7шт.

8

1317418C1

ANGLE

trough support, left hand

1шт.

9

186717C1

PLATE

SUPPORT collecting auger, left hand

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

1541637C1

SUPPORT

trough, right hand

1шт.

12

231-5315

FLANGE NUT,Flg, 5/16"-18

7шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

15

188285C1

RETAINER

trough support, right hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

6шт.

20

191716C1

EXTENSION

SUPPORT trough

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

24

231-5315

FLANGE NUT,Flg, 5/16"-18

5шт.

25

1327668C1

SUPPORT

trough auger

1шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

hex flange, special, 1/2 NC x 1-1/4 inch

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special, 1 inch

9шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

30

1317454C1

CLAMP

auger trough, perforated

1шт.

30

1317452C1

CLAMP

auger trough, non perforated

1шт.

31

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

3шт.

31

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

BOLT hex, 5/16 NC x 1 inch, grade 2, perforated clamp

3шт.

32

231-4115

NUT,5/16"-18, GB

Non perforated clamp

3шт.

35

1317484C1

AUGER

grain

1шт.

36

156011C92

BALL BEARING

ball, auger, left hand

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

auger, right hand

1шт.

May be alternated with Refs. 50, 51, and 52

1шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

557995R11

COLLAR

bearing, with set screw

2шт.

42

939460R91

FLANGE

bearing with 45 degree lube fitting

1шт.

43

939461R1

FLANGE

bearing, grooved

1шт.

44

117657A1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 2"

1шт.

45

231-5146

FLANGE NUT,3/8"-16

3шт.

46

1541823C1

COVER

grain trough used with perforated bottom trough

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

49

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

self tapping, hex washer head, 5/16 NC x 1 inch

4шт.

50

156011C92

BALL BEARING

ball, auger

1шт.

May be alternated with Refs. 37, 51 and 52

1шт.

51

581469R1

FLANGE,Bearing

bearing retainer

2шт.

May be alternated with Refs. 37, 50 and 52

1шт.

52

1979642C1

SPACER

bearing flange

1шт.

May be alternated with Refs. 37, 50 and 51

1шт.

Выбрано товаров: 51
