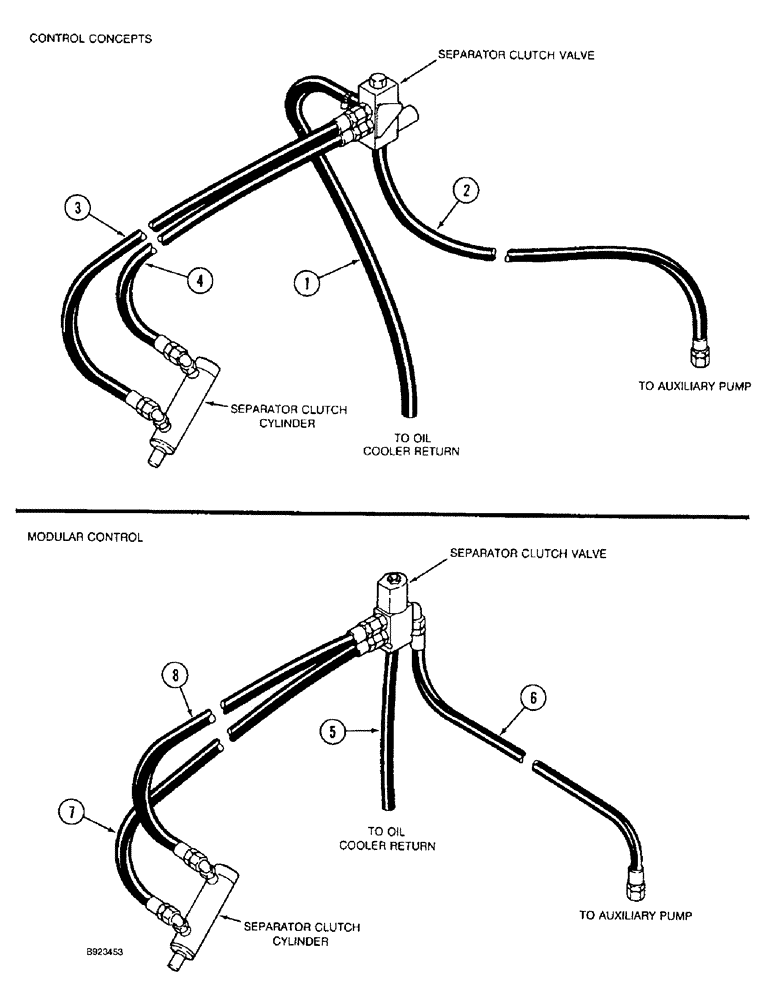

Запчасти Case IH 1666 (1-32) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROL (00) - PICTORIAL INDEX

1

Separator Clutch Return Hose, Page 8-65

1шт.

2

Separator Clutch Pressure Hose, Page 8-65

1шт.

3

Separator Clutch Disengage Hose, Page 8-65

1шт.

4

Separator Clutch Engage Hose, Page 8-65

1шт.

MODULAR CONTROL

1шт.

5

Separator Clutch Return Hose, Page 8-65

1шт.

6

Separator Clutch Pressure Hose, Page 8-65

1шт.

7

Separator Clutch Disengage Hose, Page 8-65

1шт.

8

Separator Clutch Engage Hose, Page 8-65

1шт.
