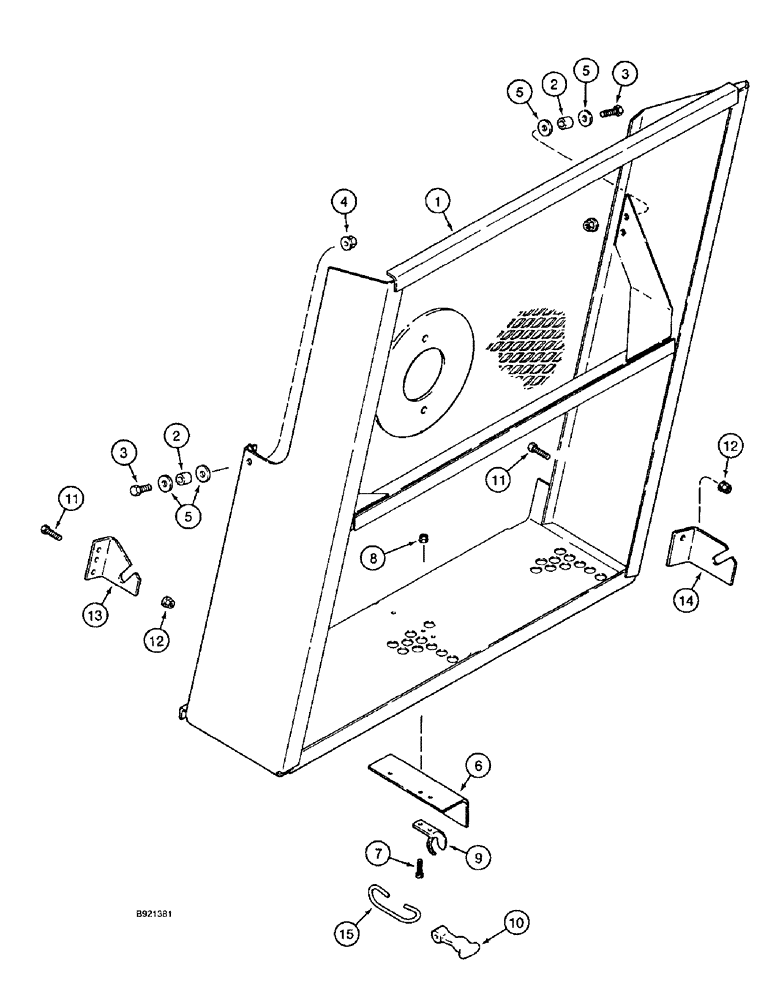

Запчасти Case IH 1666 (9C-20) - CLEANING FAN SHIELDS, RIGHT-HAND FAN INLET AND DRIVE SHIELD (15) - BEATER & CLEANING FANS

1

182846C5

HOUSING

SHIELD fan inlet and drive, right hand, replaces 182846C4

1шт.

2

561277R1

SPACER,5/8" Tube x 1/2"

113/32 x 5/8 x 7/16 inch

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

6

181496C1

SHIELD

GUARD latch

1шт.

7

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

3шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

9

L105124

LATCH HOOK

HOOK latch, fan shield bracket

1шт.

10

494307C1

LATCH

hold down, latch shield

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

231-51409

SERRATED NUT,Flg, USR, #10-24

hex serrated flange, 5/16 inch NC

2шт.

13

182859C2

SUPPORT

fan shield rear, right hand

1шт.

14

182861C1

ANGLE

shield, right hand, front

1шт.

15

1302723C2

HOOK

inlet shield, replaces 1302723C1

1шт.
