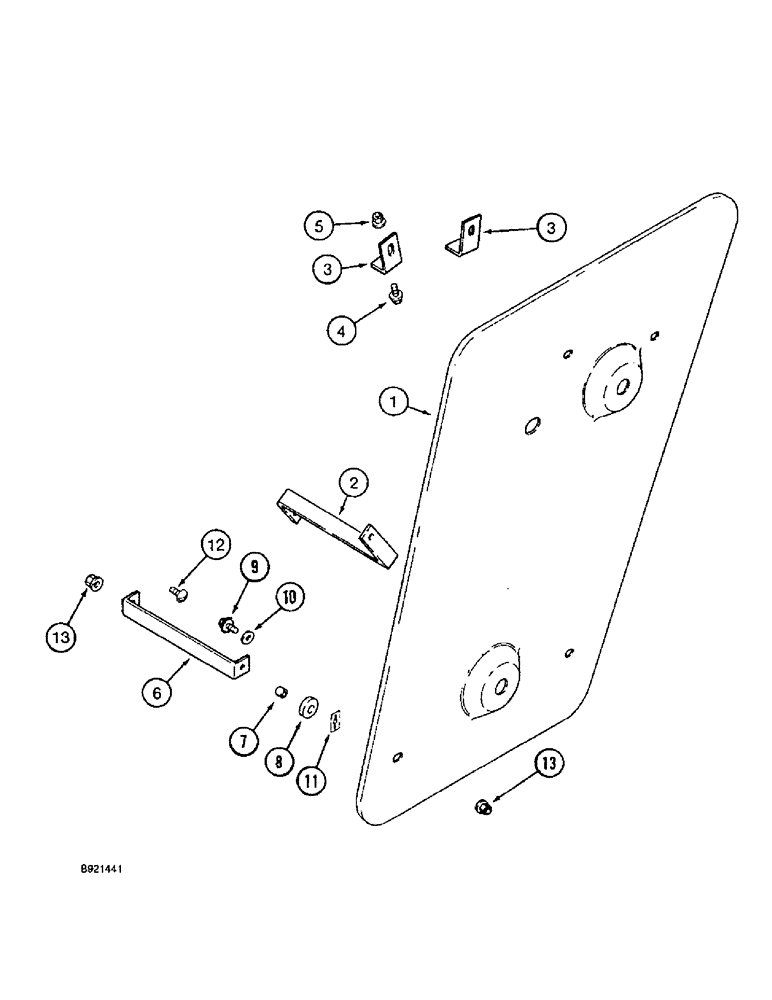

Запчасти Case IH 1666 (9C-16) - CLEANING FAN DRIVE SHIELD, RIGHT-HAND SIDE (15) - BEATER & CLEANING FANS

1

1312758C2

GUARD

SHIELD fan drive, right hand side

1шт.

2

111252A2

SUPPORT

fan shield, lower front

1шт.

3

194756C2

ANGLE

fan drive pulley shield

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

1312759C1

HOLDER

BRACKET fan shield, lower, rear

1шт.

7

23323H

SPACER,1/4" Pipe x 1/2"

1/4 x 1/2 inch shield bracket

4шт.

8

1312760C1

RUBBER WASHER

rubber, special shield bracket

4шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

BOLT hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

11

1254276C1

PUSH-ON NUT

push on type, 5/16 inch

4шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.
