Запчасти Case IH 1666 (9C-12) - CLEANING FAN, DRIVE (15) - BEATER & CLEANING FANS

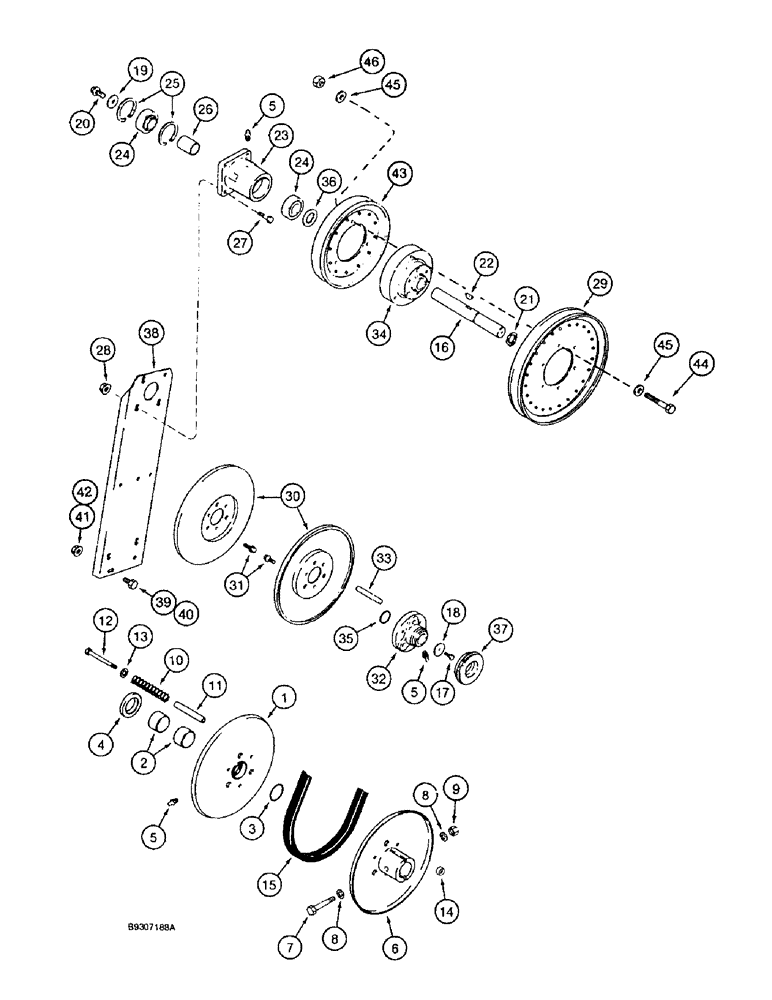

Схема запчастей Case IH 1666 - (9C-12) - CLEANING FAN, DRIVE (15) - BEATER & CLEANING FANS
15
23
11
25
4
30
17
14
24
2
32
3
20
28
9
8
5
46
1
43
40
8
39
5
29
38
31
10
7
5
34
21
18
24
45
22
45
27
12
37
44
35
19
42
13
26
6
16
41
33
36

Артикул

Название

Примечание

Количество

1541552C1

PULLEY ASSY.

fan drive, adjustable, 11-1/4 inch O.D.

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY fan drive, adjustable, 11-1/4 inch O.D.

2шт.

2

1541551C1

BUSHING,44.32mm ID x 48.97mm OD x 30.2mm L

pulley

1шт.

3

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

4

1541775C1

SEAL

1-47/64 ID x 2-21/64 inch O.D. grease, lip type

3шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

1541553C1

PULLEY ASSY.

fan drive, fixed, 11-1/4 inch O.D.

1шт.

7

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

8

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

9

232-4118

NUT,1/2"-13, GC

1шт.

10

1302181C2

SPRING

adjustment, fan drive

3шт.

11

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

spacer, adjustment spring

3шт.

12

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

13

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

3шт.

14

231-4115

NUT,5/16"-18, GB

3шт.

15

1541569C1

V-BELT,1816.65 mm L

1шт.

16

194853C3

SHAFT

elevator and fan drive

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

1шт.

18

495-81122

WASHER,.344" x 1 1/2" x .120"

flat, 11/32 x 1-1/2 x 7/64

1шт.

19

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

flat, special, retaining, fan bearing

1шт.

20

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special 1 inch

1шт.

21

100-16125

SNAP RING,#125, Ext

Inner bearing

1шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Elevator and fan drive shaft

1шт.

23

192418C1

HUB

elevator and fan drive

1шт.

24

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

self aligning adapter, elevator and fan drive

2шт.

25

360936R1

RING

snap, fan and drive shaft

2шт.

26

152926C1

SPACER

1-15/16 x 1-5/8 x 1-7/8 inch bearing

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.

29

183325C1

PULLEY

driven, fan jackshaft, parts list Fig. 9A-2, Ref. 25

1шт.

30

183288C1

PULLEY

driven, 11-1/4 inch O.D. fan

2шт.

31

115745A1

FLANGE BOLT

BOLT special, fan driven pulley

6шт.

32

185286C91

HUB

fan driven pulley, adjusting

1шт.

33

37-1856

DOWEL,1/2" x 3 1/2"

Hardened

3шт.

34

183333C1

HUB

fixed pulley, fan driver

1шт.

35

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

36

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

flat, special, 1-9/32 x 1-7/8 x 3-16 inch fan bearing retainer

1шт.

37

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

ball, thrust fan jackshaft

1шт.

38

1541632C1

SUPPORT

fan hub

1шт.

39

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

40

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

41

231-5146

FLANGE NUT,3/8"-16

4шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

43

193948C1

PULLEY,39.61mm W x 254mm OD

drive, 9-3/4 inch O.D. cleaning unit drive, parts list Fig. 9A-4, Ref. 17

1шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

45

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64

6шт.

46

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.

Выбрано товаров: 47
