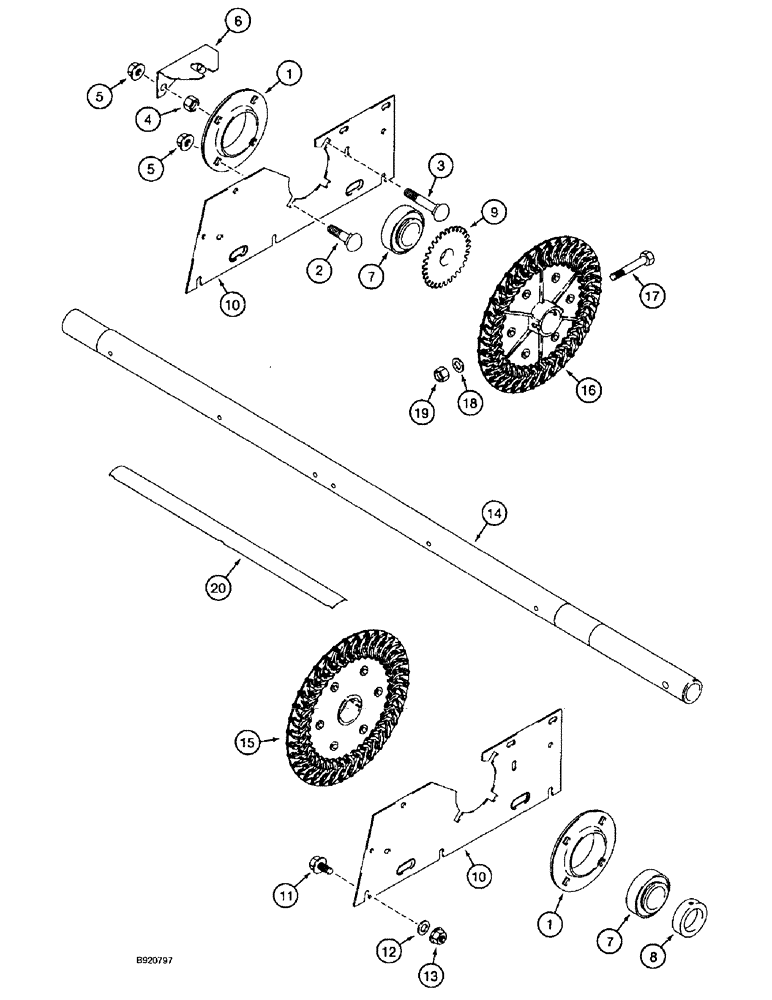

Запчасти Case IH 1666 (9C-10) - CLEANING FAN, SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS

1

76079C1

FLANGE

fan shaft bearing

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 inch

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

1541554C1

SUPPORT

BRACKET mounting, fan speed pickup

1шт.

7

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

ball, fan shaft

2шт.

8

582816R11

COLLAR

bearing lock, includes set screw

1шт.

9

1541555C1

SPROCKET

fan speed tachometer, 1-3/4 inch ID

1шт.

10

120870A1

SUPPORT

fan shaft bearing, includes decal

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

1541935C3

FAN

ASSEMBLY cleaning, replaces 154935C1, Includes: Ref. 14 thru 20

1шт.

14

1989550C3

SHAFT

cleaning fan, replaces 1989550C1

1шт.

15

1541560C1

FAN BLADE

fan blade, right hand

3шт.

16

1541570C1

FAN BLADE

fan blade, left hand

3шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

6шт.

18

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

12шт.

19

230-4135

LOCK NUT,5/16"-18, GA

hex, self locking, 5/16 inch NC

6шт.

20

1541631C1

PADDLE

BLADE cleaning fan

72шт.

21

437157R1

SNAP RING,#37, Ext

not shown #37, Ext

3шт.
