Запчасти Case IH 1666 (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS

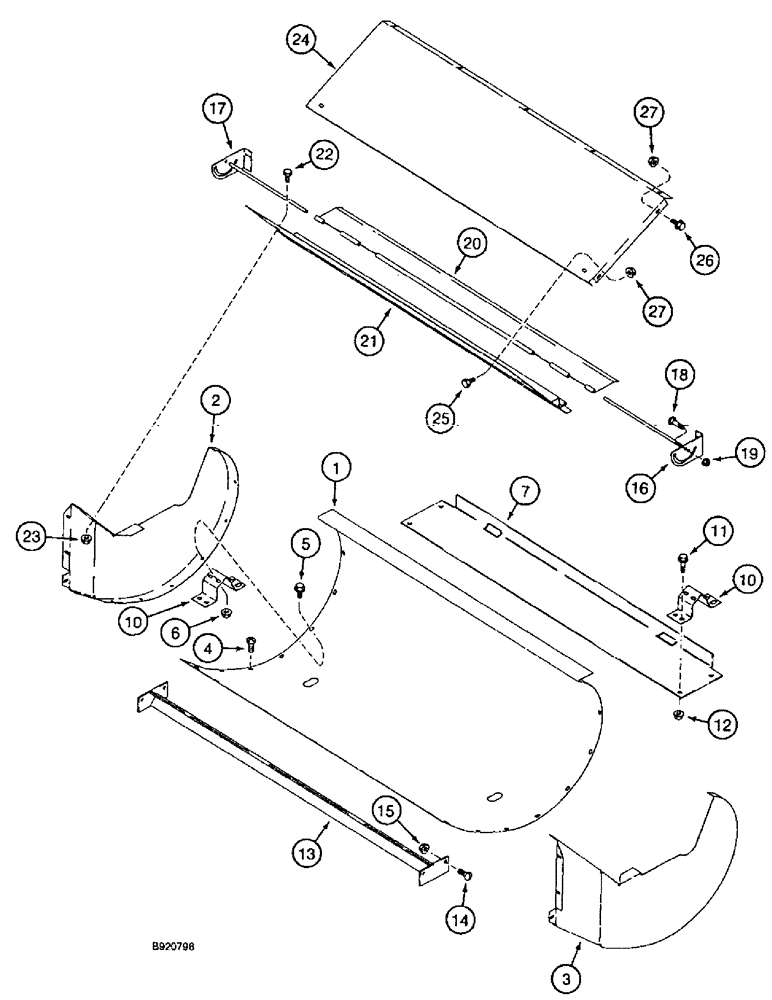

Схема запчастей Case IH 1666 - (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS
4
10
17
23
2
19
13
14
27
12
24
25
16
26
7
11
27
20
5
18
3
22
6
10
1
15
21

Артикул

Название

Примечание

Количество

1

1989379C1

HOUSING

cleaning fan

1шт.

2

1347012C2

PLATE

end, left hand fan housing

1шт.

3

1347013C2

PLATE

end, right hand fan housing

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

21шт.

7

1541641C2

SUPPORT

housing mounting brackets, front

1шт.

10

1541543C1

BRACKET

mounting, fan housing, front

2шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 inch NC x 1 inch

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191703C3

SUPPORT ASSY.

fan housing, rear

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

1541536C1

LARGE PLATE

PLATE, LARGE lock, fan cutoff, right hand

1шт.

17

1541535C1

LARGE PLATE

PLATE, LARGE lock, fan cutoff, left hand

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

1989611C1

HOOD

PLATE fan cutoff

1шт.

21

1541628C1

HOOD

DOOR cleaning fan, top

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

1989377C2

SUPPORT

PLATE filler, fan to auger bed

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

Выбрано товаров: 26
