Запчасти Case IH 1666 (9C-06) - DISCHARGE BEATER BOTTOM, RICE, SPRING LOADED (15) - BEATER & CLEANING FANS

1

REF

INSTRUCTION

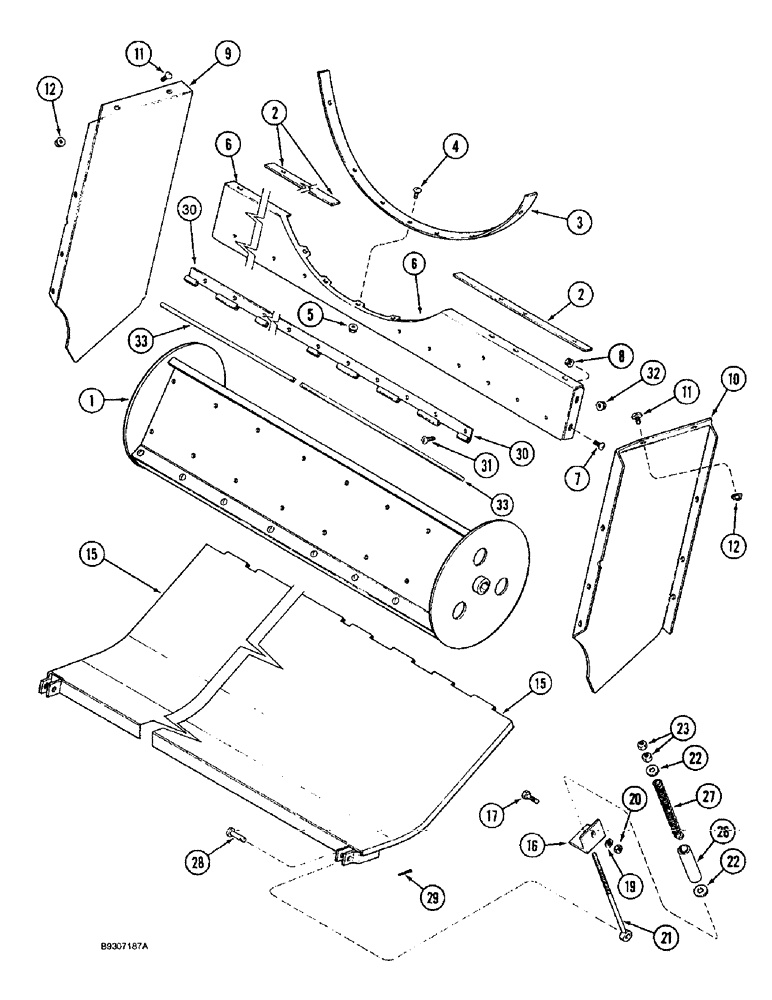

BEATER ASSEMBLY, discharge, parts list Fig. 9C-2

1шт.

2

182891C1

PLATE

bulkhead filler, rear

2шт.

3

182898C1

SUPPORT

PLATE filler, housing, rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

182929C1

SUPPORT

cage, lower rear housing

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

10шт.

8

231-5146

FLANGE NUT,3/8"-16

10шт.

9

182946C1

DEFLECTOR

discharge, left hand

1шт.

10

182947C1

DEFLECTOR

discharge, right hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

12шт.

12

231-5146

FLANGE NUT,3/8"-16

12шт.

15

182924C2

DOOR

PAN beater

1шт.

16

182896C2

SUPPORT

spring bottom

2шт.

17

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

19

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

2шт.

20

232-4116

NUT,3/8"-16, GC

2шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

eye, beater bottom

2шт.

22

495-81162

WASHER,17/32" x 1 1/2" x .179"

flat, 17/32 x 1-1/2 x 11/64 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

4шт.

26

182981C1

SPACER

SLEEVE spring, beater bottom

2шт.

27

391745R1

SPRING

beater bottom

2шт.

28

439-1828

HEADED PIN,1/2" x 1 3/4"

headed, 1/2 x 1-3/4 inch, grade 2

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

182894C1

HINGE

pan, beater bottom

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

10шт.

32

231-5146

FLANGE NUT,3/8"-16

10шт.

33

182977C1

ROD

lower hinge, bottom

1шт.
