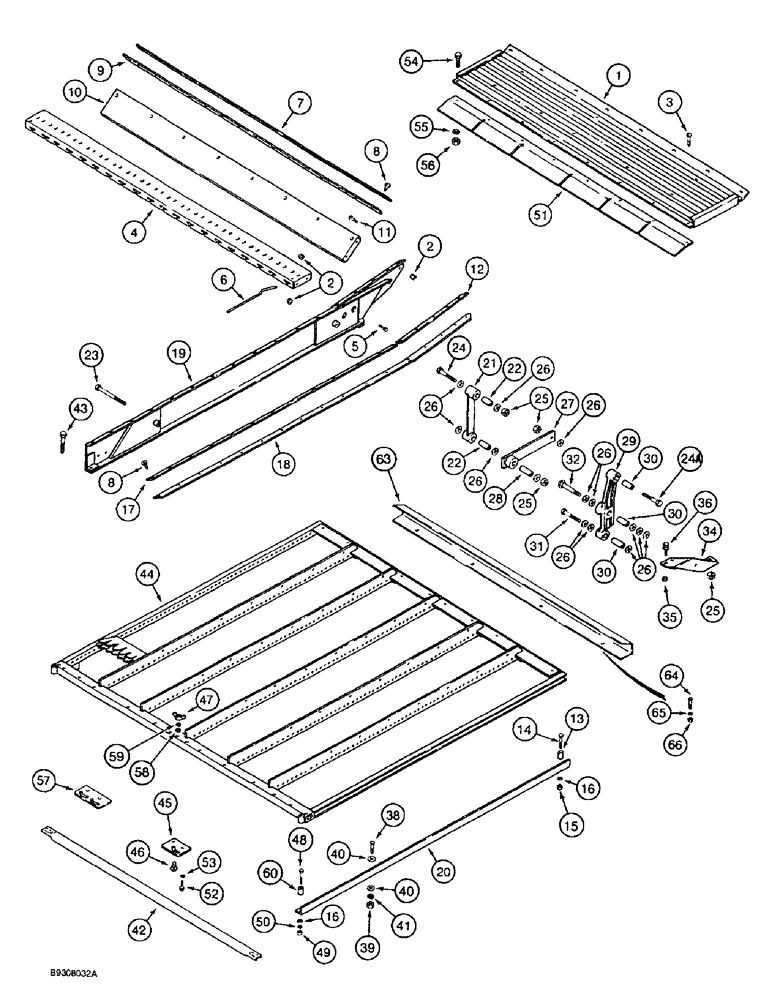

Запчасти Case IH 1666 (9B-44) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192056C1

GRAIN PAN

GRAINPAN

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 in.

20шт.

4

1312156C1

SUPPORT

chaffer pan

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT hex flange, 5/16 NC x 3/4 in., grade 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed, short

20шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

auger bed, long

20шт.

7

192048C2

BAR

SEAL chaffer frame, front

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 in.

1шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP chaffer frame, front

1шт.

10

192044C1

SUPPORT

chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

192052C2

BAR

chaffer frame seal, short

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

chaffer sieve support, front, 3/8 ID x 1 in.

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

BOLT hex, 3/8 NC x 2-1/4 in., grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

flat, 13/32 x 1 x 11/64 in.

4шт.

17

1325332C1

BAR

chaffer frame seal, long

2шт.

18

1325331C1

SEALING STRIP

chaffer frame

2шт.

19

1979206C1

RAIL

chaffer, left hand

1шт.

19

1979207C1

RAIL

chaffer, right hand

1шт.

20

1325334C3

SUPPORT

chaffer support, right hand

1шт.

20

1325333C3

SUPPORT

chaffer support, left hand

1шт.

21

1957455C1

ARM

rear hanger, Includes: Ref. 22

2шт.

22

1330324C1

BUSHING

front hanger

2шт.

23

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

BOLT hex, 5/8 NC x 7 in., grade 8

2шт.

24

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

24a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

25

232-41110

NUT,5/8"-11, GC

10шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 in. NC

3шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 in.

28шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

flat, 29/32 x 1-1/2 x 7/64 in.

2шт.

27

1330357C1

ARM

shoe, rear, Includes: Ref. 28

2шт.

28

1330324C1

BUSHING

shoe arm

1шт.

29

1957460C2

LEVER

ASSY., shoe, Includes: Ref. 30

2шт.

30

1330323C2

BUSHING

shoe lever, 5/8 x 1-1/2 x 2-57/64 in.

3шт.

31

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

BOLT hex, 5/8 NC x 6 in., grade 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT carriage, 5/8 NC x 5 in.

2шт.

34

1968827C1

SUPPORT

shoe lever, left hand

1шт.

34

1968828C1

SUPPORT

shoe lever, right hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

4шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

39

425-105

NUT,5/16"-18, G5

2шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64

4шт.

41

492-11031

LOCK WASHER,5/16"

2шт.

42

1325336C2

BAR

PIPE chaffer support

1шт.

43

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

44

1957314C6

GRAIN SIEVE

close slat chaffer, 1-5/8 in. extended, replaces 1957314C5

1шт.

44

1957316C5

GRAIN SIEVE

adjustable chaffer, 1-1/8 in, extended, replaces 1957316C4

1шт.

44

1957315C6

GRAIN SIEVE

corn slat chaffer, 1-5/8 in. extended, replaces 1957315C5

1шт.

44

1970516C6

GRAIN SIEVE

Peterson extended chaffer, replaces 1970516C5

1шт.

45

120668A1

LARGE PLATE

PLATE, LARGE chaffer lever, upper

1шт.

46

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT carriage, 1/4 NC x 1/2 in., grade 2

3шт.

47

129-409

WING NUT,1/4"-20

1/4 in. NC

3шт.

48

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

49

429-106

NUT,3/8"-16, G8

hex, 3/8 in. NC, grade 8

2шт.

50

492-11038

LOCK WASHER,3/8"

2шт.

51

1319258C1

COVER

chaffer finger

1шт.

52

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT hex washer head, special, 3/8 NC x 1-1/4 in.

2шт.

53

492-11038

LOCK WASHER,3/8"

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

55

492-11025

LOCK WASHER,1/4"

8шт.

56

425-104

NUT,1/4"-20, Cl 5

8шт.

57

120667A1

PLATE

chaffer lever, lower

1шт.

58

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 in.

3шт.

59

492-11025

LOCK WASHER,1/4"

3шт.

60

612233R1

SPACER,5/8" Tube x 1 1/8"

13/32 x 5/8 x 1-3/16 in.

2шт.

63

119997A1

DEFLECTOR

sieve

1шт.

64

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4 in.

4шт.

65

495-81107

WASHER,.281" x 7/8" x .060"

flat, 9/32 x 7/8 x 3/64 in.

4шт.

66

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.
