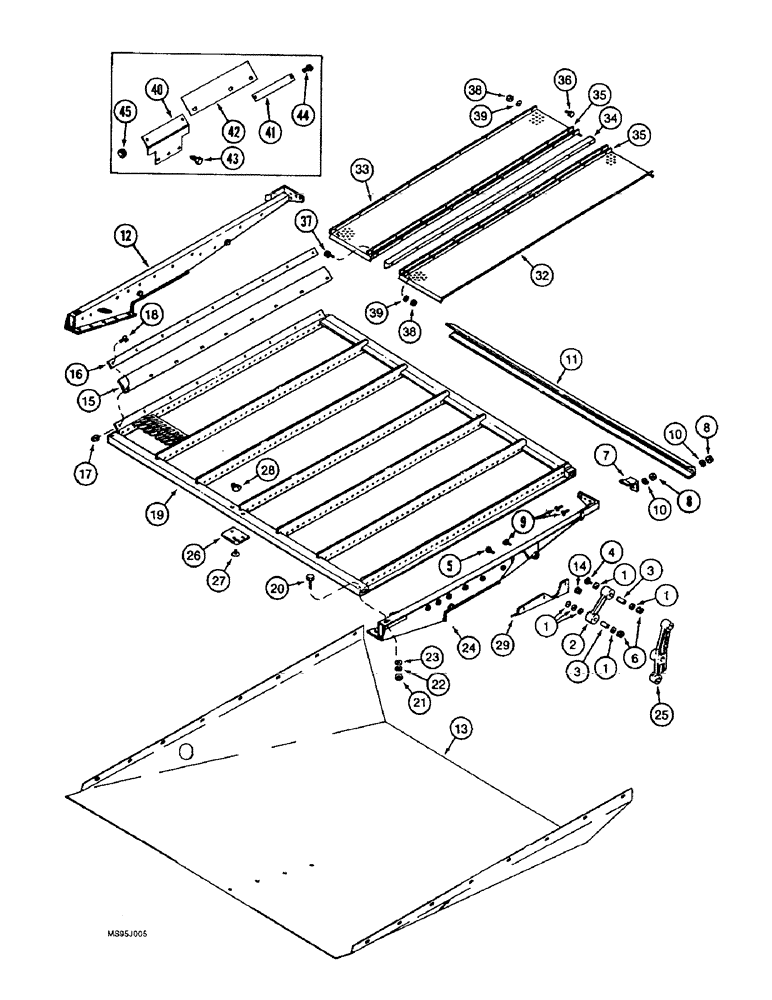

Запчасти Case IH 1666 (9B-40) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 in.

12шт.

2

1957450C1

ARM

HANGER shoe, front, Includes: Ref. 3

2шт.

3

1330324C1

BUSHING

front hanger

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT carriage, 5/8 NC x 4 in.

2шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

6

232-41110

NUT,5/8"-11, GC

4шт.

7

182684C2

CLIP

shoe, front support

2шт.

8

425-105

NUT,5/16"-18, G5

8шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

26шт.

10

492-11031

LOCK WASHER,5/16"

8шт.

11

1319238C1

ANGLE

BRACKET shoe sieve

1шт.

12

1979900C3

RAIL ASSY.

SUPPORT shoe, side, left hand

1шт.

13

1979210C1

HOUSING

PAN bottom

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

15

1325324C1

SEAL,56mm W x 1582mm L

shoe sieve, for shoe seal extension kit, see Refs. 40 thru 45

2шт.

16

1325325C1

RETAINER

shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

18

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 in.

18шт.

19

1325323C5

GRAIN SIEVE

shoe, 1-1/8 in. slat, replaces 1325323C4

1шт.

19

1994961C4

GRAIN SIEVE

shoe, 1-5/8 in. slat, replaces 1994961C3

1шт.

19

1970358C4

SIEVE shoe, 18 mm round holes, replaces 1994961C2

1шт.

19

129935A1

GRAIN SIEVE

shoe, 13 mm round holes

1шт.

19

129936A1

GRAIN SIEVE

shoe, 10 mm round holes

1шт.

19

129937A1

GRAIN SIEVE

shoe, 5 mm round holes

1шт.

19

129938A1

GRAIN SIEVE

shoe, 2.5 mm round holes

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

21

429-106

NUT,3/8"-16, G8

hex, 3/8 in. NC, grade 8

2шт.

22

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 in.

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

1979901C4

RAIL ASSY.

SUPPORT shoe side, righjt hand, replaces 1979901C3

1шт.

25

1957460C2

LEVER

ASSY., shoe, see Fig. 9B-44 Ref. 30 for bushing

1шт.

26

186675C1

ADJUSTING PLATE

shoe lever

1шт.

27

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

1шт.

28

126177

WING NUT

1/4 in. NC

1шт.

29

1325320C1

SUPPORT ASSY.

forward shoe, left hand

1шт.

29

1325321C1

SUPPORT

forward shoe, right hand

1шт.

32

1319285C1

SCREEN

perforated side section

2шт.

33

1319286C1

SCREEN

perforated mid section

2шт.

34

1319284C1

BAR

wood spacer

1шт.

35

1319300C1

BAR

screen fastener backing

8шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

18шт.

38

425-104

NUT,1/4"-20, Cl 5

27шт.

39

492-11025

LOCK WASHER,1/4"

27шт.

197493A1

PACKAGE

KIT shoe extension, Includes: Ref. 40 thru 45

1шт.

40

187187A1

PLATE

shoe rail extension

2шт.

41

187204A1

BAR

shoe sieve seal extension

2шт.

42

187207A1

SEAL

shoe sieve

2шт.

43

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

44

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

serrated slotted truss head, 1/4 NC x 3/4 in.

6шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.
