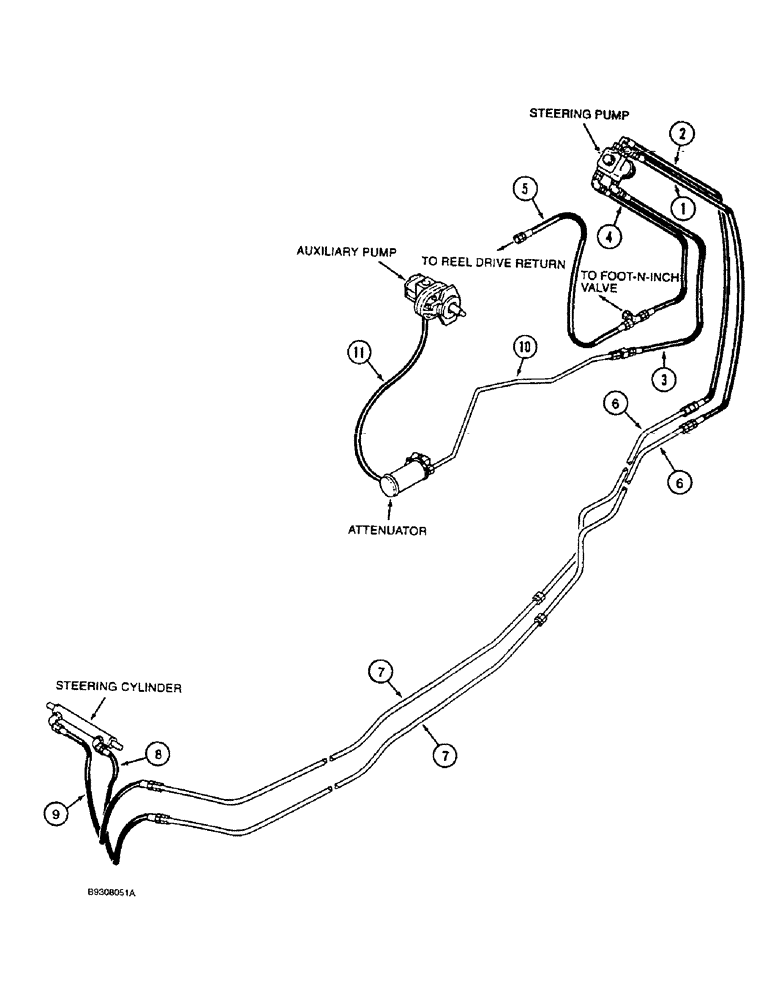

Запчасти Case IH 1666 (1-26) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX

1

Right Hand Steering Hose, Page 5-7

1шт.

2

Left Hand Steering Hose, Page 5-7

1шт.

3

Steering Supply Hose, Page 5-5

1шт.

4

Steering Return Hose, Page 5-5

1шт.

5

Reel Drive Return Hose, Page 8-53

1шт.

6

Steering, Intermediate, Forward Tubes, Page 5-7

1шт.

7

Steering, Rear Tubes, Page 5-7

1шт.

8

Steering Cylinder Lower Hose, Pages 5-7, 5-35

1шт.

9

Steering Cylinder Upper Hose, Pages 5-7, 5-35

1шт.

10

Steering Pressure Tube, Page 5-5

1шт.

11

Steering Pressure Tube, Page 5-5

1шт.
