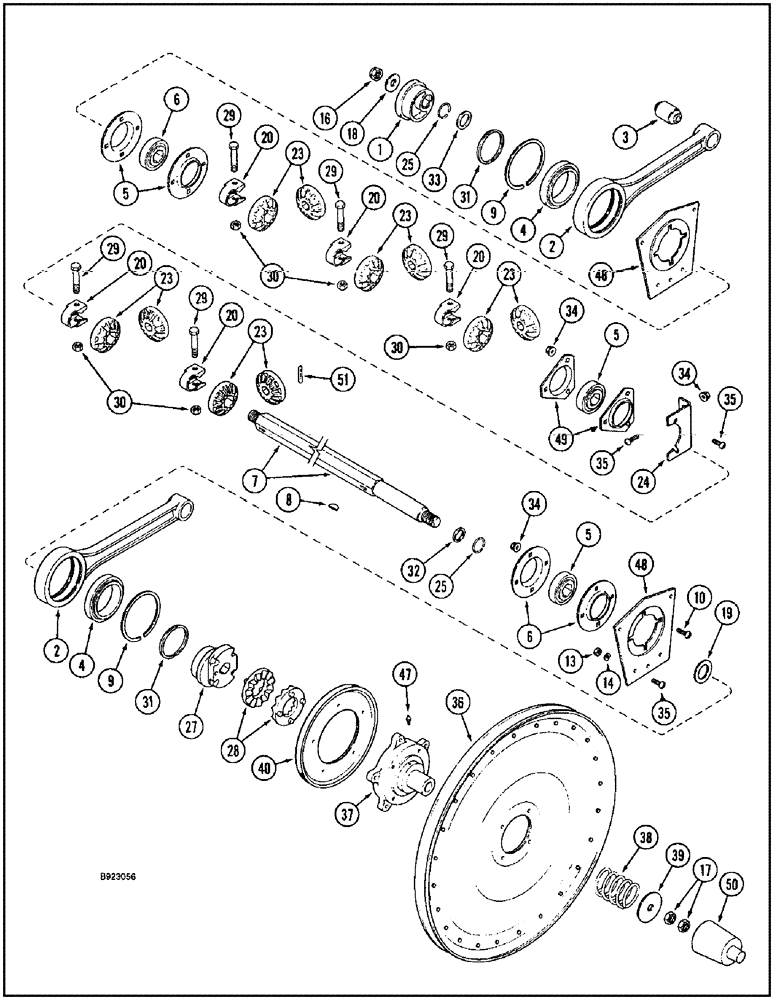

Запчасти Case IH 1666 (9B-36) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

shaker shaft, pitman drive, left hand

1шт.

2

1989251C1

ARM

PITMAN shaker shaft, Includes: Ref. 3

2шт.

3

1979383C1

BUSHING

shaker shaft

1шт.

4

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

ball, pitman shaker shaft

2шт.

5

87376564

BALL BEARING,28.47mm Hex x 72mm OD x 25mm W

bearing, shaker shaft

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

ball, shaker shaft

3шт.

7

1970192C1

SHAFT

shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

9

1322624C1

SNAP RING

RING internal, pitman bearing, 5-1/8 in.

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

8шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

16

232-41112

NUT,3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 in. NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

flat, 1-13/32 x 2-1/4 x 7/64 in.

1шт.

20

225265R1

CLAMP

auger bed gear

5шт.

23

1300639C1

GEAR-SET

auger drive, set of two, 14 teeth

5шт.

24

186589C1

SUPPORT

center bearing, auger drive

1шт.

25

575186R1

SNAP RING

retaining, shaker shaft, pitman

2шт.

27

1322574C1

CAM

shaker shaft, pitman drive, right hand

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

clutch, shaker shaft drive slip clutch

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 in.

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 in. NC

5шт.

31

1979190C1

RETAINER

RING

2шт.

32

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

flat, 1-1/5 x 1-1/4 x 1/8 in.

1шт.

33

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

flat, special, 29/32 x 1-1/4 x 1/8 in.

1шт.

34

231-5146

FLANGE NUT,3/8"-16

5шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

8шт.

36

REF

INSTRUCTION

PULLEY shaker shaft driven, right hand drive, see Fig. 9A-4

1шт.

37

1303136C1

HUB

drive slip clutch, shaker shaft

1шт.

38

19302K

SPRING

shaker shaft drive slip clutch

1шт.

39

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

special, slip clutch retainer

1шт.

40

566516R91

PULLEY ASSY.

drive, straw spreader drive, 9-3/4 in. O.D.

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

48

1302221C1

PLATE

shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

bearing, center shaker shaft bearing

2шт.

50

182544C1

SHIELD

shaker shaft spring

1шт.

51

38-32032

PIN,7.92mm OD x 50.8mm L

5/16" x 2", Coiled

4шт.
