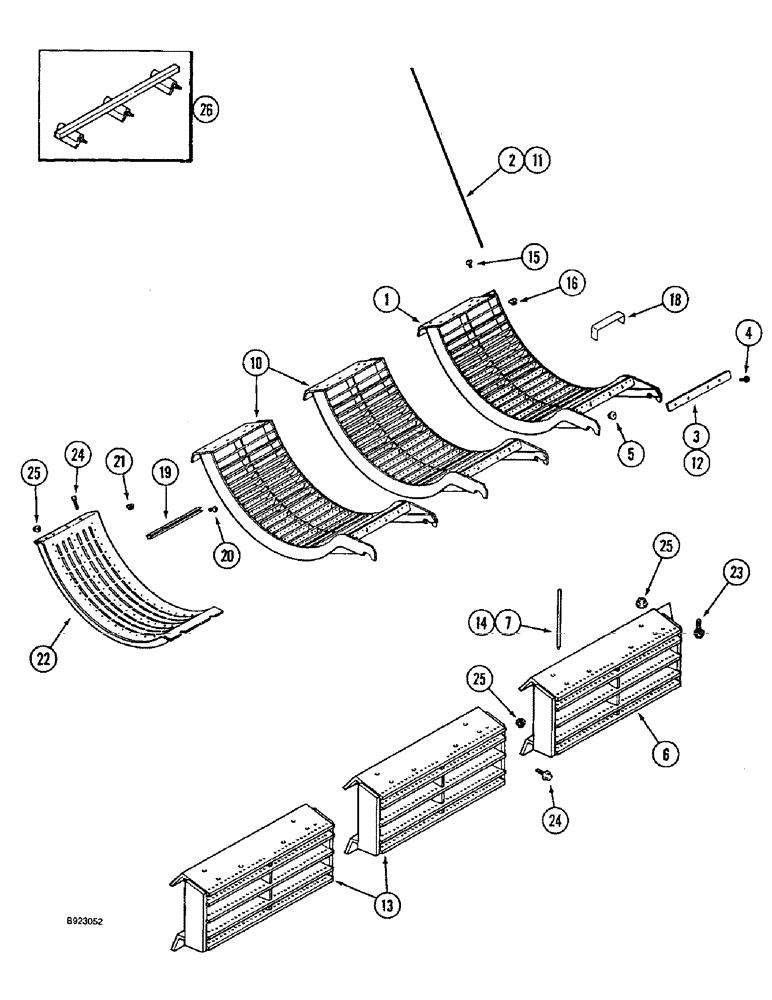

Запчасти Case IH 1666 (9B-28) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

1

1309208C3

CONCAVE

ASSY., front, small wire, Includes: Ref. 2 and 3

1шт.

2

1302602C2

ROD

concave, 3/16 x 29 in. long

30шт.

3

193859C1

PLATE

concave, wire retaining

2шт.

1

1302606C5

CONCAVE

ASSY., front, large wire, hardened, Includes: Ref. 2 and 3

1шт.

2

1302601C2

STEM

ROD concave, 1/4 x 29 in. long

14шт.

3

193859C1

PLATE

concave, wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

self locking, truss head Phillips, special, 3/8 NC x 1 in.

1шт.

5

231-5146

FLANGE NUT,3/8"-16

1шт.

6

1318553C1

CONCAVE

ASSY., small wire extension, Includes: Ref. 7

1шт.

7

1318561C1

PIN

PIN, LARGE small wire

30шт.

6

1318551C1

CONCAVE

ASSY., large wire extension, Includes: Ref. 7

1шт.

7

1318560C1

LARGE PIN

PIN, LARGE wire

14шт.

10

1309210C3

CONCAVE

ASSY., No. 2 and 3 small wire, Includes: Ref. 11 and 12

2шт.

11

1302602C2

ROD

concave, 3/16 x 29 in. long

30шт.

12

193859C1

PLATE

concave, wire retaining

2шт.

10

1302607C4

CONCAVE

ASSY., No. 2 and 3 large wire, grain, Includes: Ref. 11 and 12

1шт.

11

1302601C2

STEM

ROD cancave, 1/4 x 29 in. long

14шт.

12

193859C1

PLATE

concave, wire retaining

2шт.

13

1318554C1

CONCAVE

ASSY., No. 2 and 3 small wire extension, Includes: Ref. 14

1шт.

14

1318561C1

PIN

PIN, LARGE small wire

30шт.

13

1318552C1

CONCAVE

ASSY., No. 2 and 3 large wire extension, Includes: Ref. 14

2шт.

14

1318560C1

LARGE PIN

PIN, LARGE wire

14шт.

15

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

BOLT hex serrated flange, 3/8 NC x 1 in., grade 8

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

1300673C91

PACKAGE

KIT concave filler, small wire, set of 6, Includes: Ref. 18

1шт.

18

1309425C1

CHANNEL

concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT concave filler, large wire set of 6, Includes: Ref. 18

1шт.

18

1309424C1

CHANNEL

concave filler, large wire

6шт.

19

191536C1

CHANNEL

grate adjusting, corn

7шт.

19

191536C1

CHANNEL

grate adjusting, grain

21шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

22

191538C3

GRATE ASSY.

slotted

3шт.

22

191538C3

GRATE ASSY.

slotted, corn, if equipped

1шт.

22

1302562C1

CONCAVE

keystock

1шт.

22

1319750C1

GRATE

smooth, sunflower seed

1шт.

23

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

BOLT hex serrated flange, 3/8 NC x 1 in., grade 8

1шт.

24

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT hex serrated flange, 3/8 NC x 1-1/4 in., grade 8

1шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

1324046C3

BAR

concave, interrupter, small wire

1шт.
