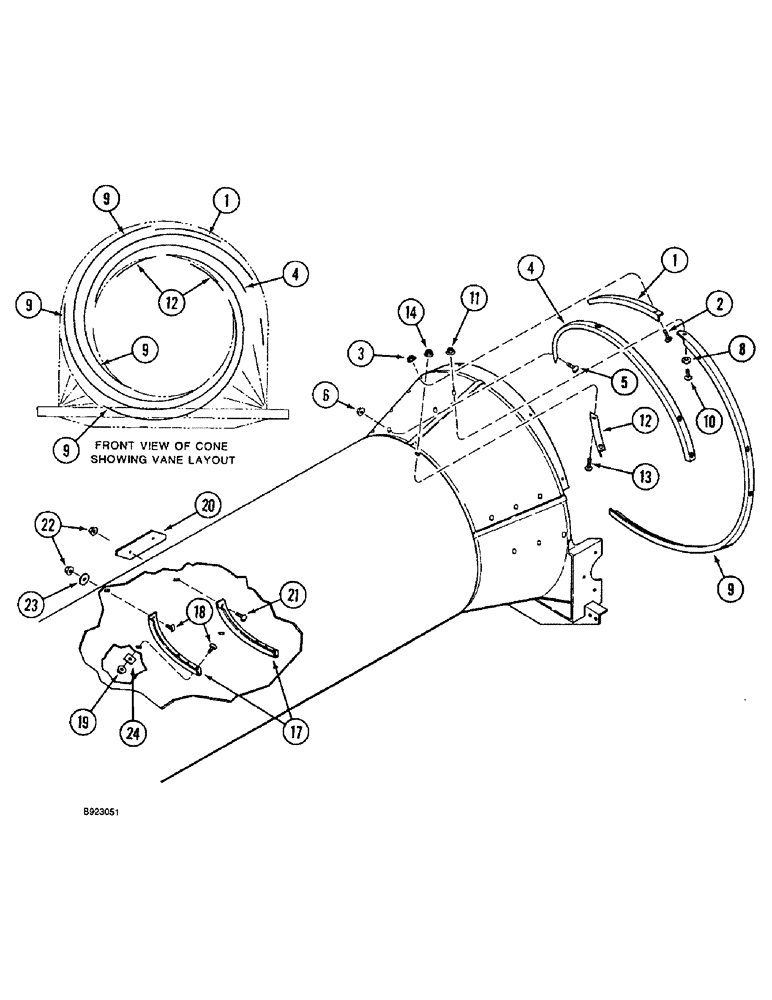

Запчасти Case IH 1666 (9B-26) - VANE (14) - ROTOR, CONCANVES & SIEVE

1

186984C1

EXTENSION

VANE cone extension

2шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

186985C3

SUPPORT

VANE cone, upper front

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

8

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 in.

1шт.

9

195355C3

GUIDE

VANE cone, front

4шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

24шт.

10

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 in.

1шт.

11

231-1445

NUT,5/16"-18, GB

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

12

193179C2

VANE

VANE transport extension

3шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

17

193175C2

GUIDE

VANE transport

13шт.

18

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

flat raised head, special, vane adjusting

13шт.

19

231-5146

FLANGE NUT,3/8"-16

39шт.

20

1318418C1

BAR

PLATE vane

6шт.

21

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

flat raised head, special, vane adjusting

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

flat, special, 13/32 x 2-1/2 x 5/32 in.

10шт.

24

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

square, 13/32 x 1-1/2 x 3/16 in.

2шт.
