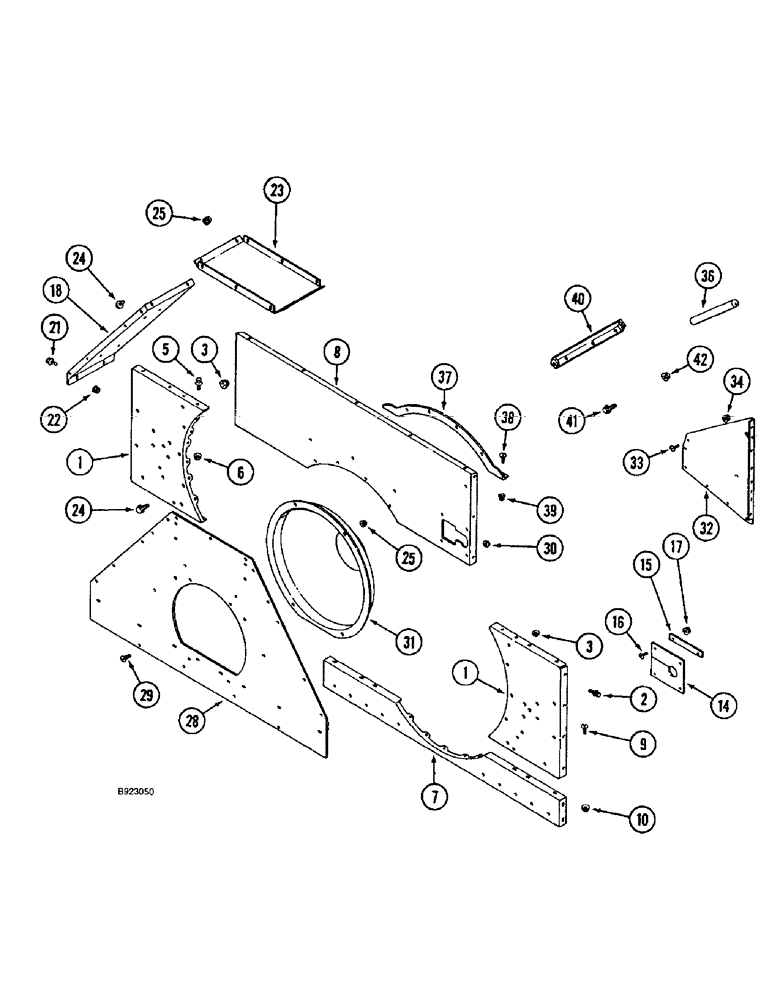

Запчасти Case IH 1666 (9B-24) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

1

1994850C2

SUPPORT

rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

16шт.

3

231-5146

FLANGE NUT,3/8"-16

24шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

7

182929C1

SUPPORT

cage, lower rear

1шт.

8

193168C2

SUPPORT

rotor, upper rtear

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

21шт.

10

231-5146

FLANGE NUT,3/8"-16

21шт.

14

191191C2

GASKET,6.35mm Thk

SEAL dust, drive line

1шт.

15

191192C1

BAR

dust seal

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

193169C1

SUPPORT

discharge side

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

23

193170C1

COVER

discharge, top

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

28

193966C1

PLATE

discharge, back

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

9шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Serial Range: -4444444444

9шт.

31

182545C2

HOUSING

RETAINER rotor gear

1шт.

32

191398C2

SHEET

SUPPORT gear housing, inner

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

4шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

36

1309111C1

SEAL,19mm W x 725mm L

SEAL rubber, gear housing support, 28-9/16 in. (725 mm) long, if equipped

1шт.

37

1308695C1

SUPPORT

rotor, rear, upper

1шт.

38

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

7шт.

39

231-5146

FLANGE NUT,3/8"-16

7шт.

40

182634C3

SUPPORT

STIFFENER, cage grate, rear

1шт.

41

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special, 1/2 NC x 1 in.

2шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
