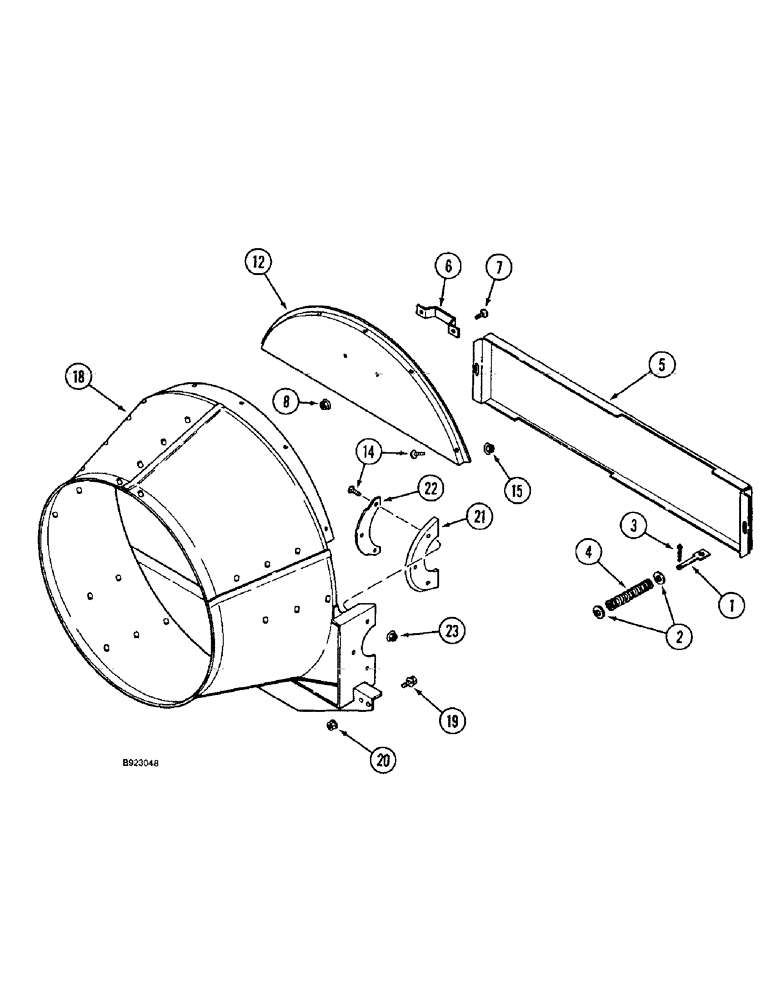

Запчасти Case IH 1666 (9B-20) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

188029C1

LATCH

separator, front door

2шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

3

432-816

COTTER PIN,1/8" x 1"

2шт.

4

M296

SPRING

front door latch

2шт.

5

193436C3

INSPECTION DOOR

separator, front

1шт.

6

160638C1

HANDLE

door, rotor front

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

12

1300208C91

DOOR

ASSY., access, rotor front

1шт.

13

1302515C1

DOOR

rotor, front support, without decal, not shown, Includes: Decal

1шт.

REF

INSTRUCTION

DECAL danger, see Fig. 9H-34 for correct decal

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

5шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

18

1317770C3

CONE

transition, grain, Replaces 1317770C2

1шт.

18

1309419C2

CONE

transition, rice

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex self locking, special, 3/8 NC x 1 in., corn and grain

4шт.

19

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

Rice

4шт.

20

231-5146

FLANGE NUT,3/8"-16

Corn and grain

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Rice

4шт.

21

195202C1

SEAL

feeder

2шт.

22

195409C1

PLATE

with weld bolt, seal backup

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.
