Запчасти Case IH 1666 (9B-12) - ROTOR, CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE

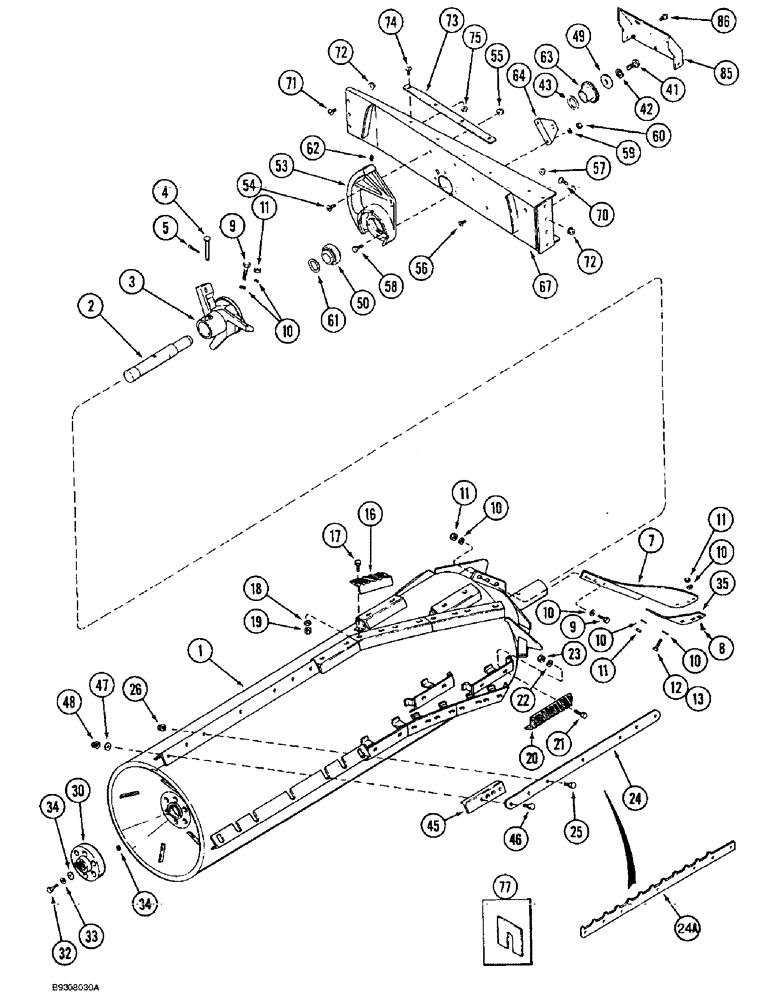

Схема запчастей Case IH 1666 - (9B-12) - ROTOR, CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE
60
3
57
25
34
11
18
61
4
35
64
86
46
43
58
24
72
55
63
20
10
5
10
23
71
1
47
7
34
24a
10
11
30
74
53
62
8
85
16
50
17
33
26
10
45
13
42
41
11
32
19
73
10
9
72
56
48
9
22
49
67
10
59
70
75
21
2
11
77
12
54

Артикул

Название

Примечание

Количество

1

1302214C96

ROTOR

ASSY., threshing, Includes: Ref. 12 thru 35

1шт.

2

191545C1

SHAFT

rotor, front

1шт.

3

191546C2

IMPELLER

rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT rotor blade, set of 3, replaces 1957446C1 and 1957446C2, Includes: Ref. 7 thru 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE rotor

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket, 1/1 NC x 1-1/2 in., replaces 426-826

9шт.

9

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Replaces 426-328

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 in.

39шт.

11

199528A1

NUT

hex, self locking, 1/2 in. NC, grade 8, replaces 232-4118

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

Replaces 426-848

3шт.

16

1308829C2

BAR

helical rasp

12шт.

16

1324583C2

BAR

helical rasp support, chrome

12шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

16a

1994891C1

BAR

helical smooth, not shown

12шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 in.

24шт.

19

232-4136

LOCK NUT,3/8"-16, GC

24шт.

20

1308668C1

RASP BAR

straight, rasp

9шт.

20

1324582C1

BAR

straight, rasp, chrome

9шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

20a

1994890C1

RASP BAR

straight, smooth, not shown

9шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

18шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 in.

18шт.

23

232-4136

LOCK NUT,3/8"-16, GC

18шт.

24

1303038C2

BAR

straight, rotor, rear

3шт.

24

1324580C1

BAR

straight, rotor, rear

3шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

24a

1302103C3

BAR

rotor, with teeth

3шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

21шт.

26

231-5146

FLANGE NUT,3/8"-16

21шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

Replaces 426-848

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 in.

12шт.

35

183253C2

BAR

PLATE wear

3шт.

35

1309185C1

SUPPORT

PLATE wear, chrome

3шт.

This Ref. is not part of 1302214C96 rotor assembly and must be purchased separately

1шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

BOLT hex, 3/4 NC x 1-3/4 in., grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 in.

1шт.

45

183335C3

SUPPORT

BRACKET rotor extension

3шт.

46

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

47

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 in.

6шт.

48

231-5146

FLANGE NUT,3/8"-16

6шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, special, rotor front shaft, 25/32 x 2-1/2 x 1/4 in.

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 in.

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 in.

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special, front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi position tachometer

1шт.

64

1301239C1

BRACKET

rotor tachometer

1шт.

67

193163C5

SUPPORT

front bearing

1шт.

70

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 in.

4шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

73

1308967C1

BAR

front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 in.

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

1324031C1

PACKAGE

KIT grain rotor separator, angle bar support

1шт.

1324208C1

SHIM KIT

KIT shim, rotor rasp, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in.

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in.

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.053 in.

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.093 in.

28шт.

85

182845C4

SHIELD

sensor

1шт.

86

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

Выбрано товаров: 79
