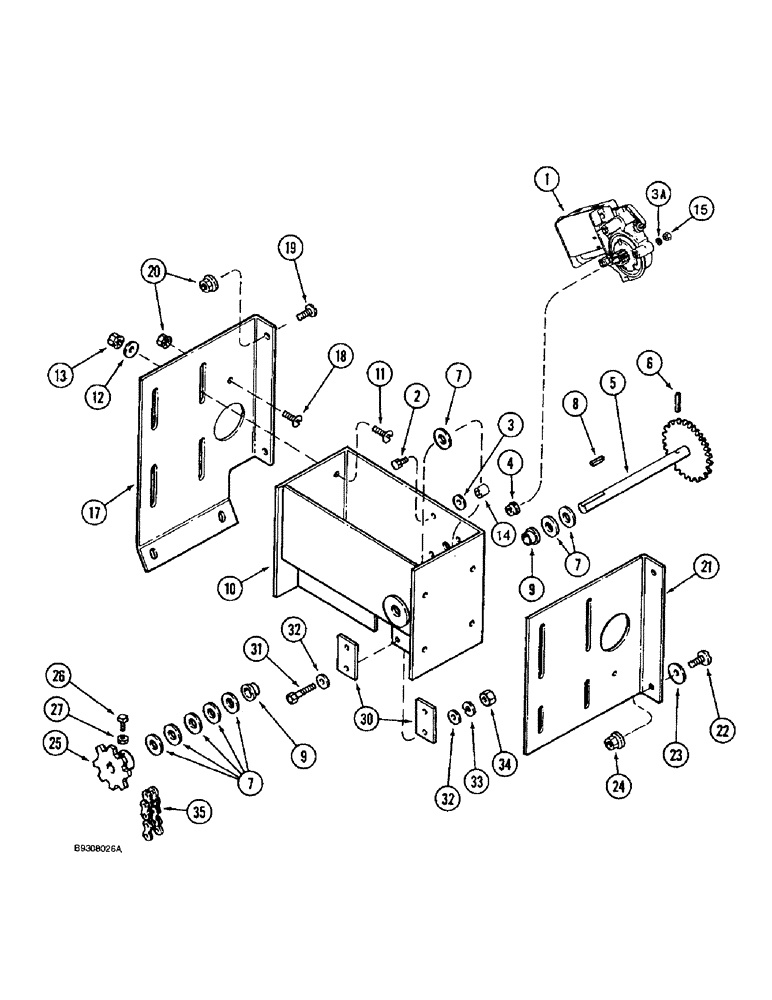

Запчасти Case IH 1666 (9B-08) - ROTOR DRIVE, SPEED ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

126573C1

MOTOR, ELECTRIC

variable speed, Serial Range: -JJC0105560

1шт.

1

111787A1

MOTOR, ELECTRIC

variable speed, Start Serial: JJC0105560

1шт.

1

111787A2R

REMAN-ELECTRIC MOTOR

1666 CASE IH AXIAL-FLOW COMBINE, variable speed, Start Serial: JJC0105560 (1/93-12/94), Reman for New PN 111787A1

1шт.

1

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with 126573C1 motor

3шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Used with 111787A1 motor

2шт.

3

495-81137

WASHER,13/32" x 1" x .224"

flat, 13/32 x 1 x 15/64 in., used with 126573C1 motor

3шт.

3a

492-11025

LOCK WASHER,1/4"

Used with 111787A1 motor

2шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

5

194338C1

GEAR

rotor gear

1шт.

6

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

5/32" x 1 1/4", Slotted

1шт.

7

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 in.

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

10

183227C1

SUPPORT ASSY.

motor, with three motor mounting holes, used with 126573A1

2шт.

10

183227C2

SUPPORT

motor, with five motor mounting holes, used with 111787A1

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

Includes Ref. 13 thru 16

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

113485A1

SPACER

17 mm, used with 111787A1 motor

2шт.

15

425-104

NUT,1/4"-20, Cl 5

Used with 111787A1 motor

2шт.

17

188203C3

SUPPORT

rotor adjusting, left hand

1шт.

18

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 in.

2шт.

184478C1

CAM

ASSY., follower, torque sensing, Includes: Ref. 19 and 20

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 in.

2шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

194336C2

SUPPORT

rotor adjusting, RH

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 in.

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

control, 8 teeth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

set, square head, cup point, 1/4 NC x 3/4 in.

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

1302173C1

PAD

motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSY., variable drive, use 31 links of No. 2040 chain, 1 connecting link 457113R91 and 2 offset links 457114R90

1шт.
