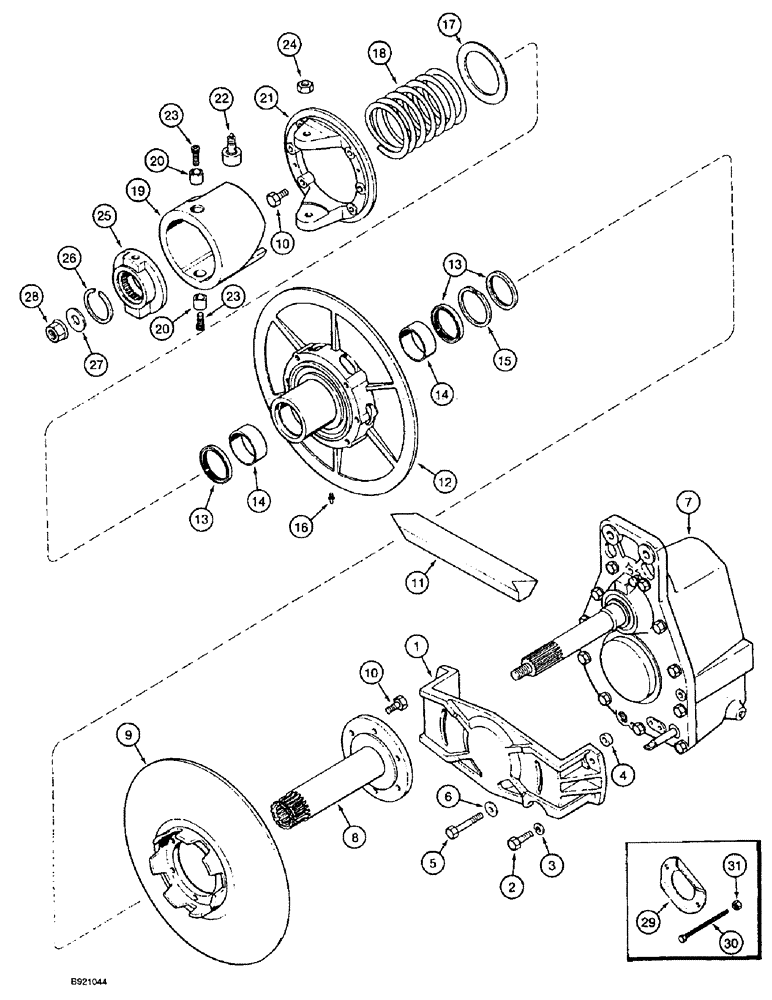

Запчасти Case IH 1666 (9B-06) - ROTOR DRIVE, PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE

1

194058C1

SUPPORT

rear gear housing

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

194077C1

SPACER

gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 in.

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 in.

2шт.

7

1315340C4

HOUSING

ASSY., rotor drive, see Figure 9B-10

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

8

1315291C2

HUB

fixed variable pulley, welded

1шт.

8

184489C1

HUB

fixed variable pulley, machined, forged

1шт.

9

1315292C2

PULLEY

fixed variable

1шт.

10

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT hex, self locking, 1/2 NC x 1-1/2 in., grade 8

12шт.

11

193923C4

V-BELT,2134.68 mm L

Rotor variable drive

1шт.

12

1315294C3

PULLEY

ASSY., adjustable variable

1шт.

13

193965C91

SEAL

pulley

3шт.

Part included in bushing and seal repair kit 188839C92

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING pulley

2шт.

Part included in bushing and seal repair kit 188839C92

1шт.

15

537602R1

RING

retaining, pulley

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

1315521C1

THRUST BEARING

WASHER thrust, rotor drive

1шт.

18

184486C1

SPRING

9-1/32 in., free length

1шт.

184478C1

CAM

ASSY., follower, torque sensing

1шт.

19

NSS

NOT SOLD SEPARAT

CAM ASSY., follower, torque sensing

1шт.

20

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

yoke pivot

2шт.

21

1315344C2

HUB

cam follower, torque sensing

1шт.

22

1315343C1

BEARING,38.1 mm OD x 22.22 mm

cam follower

2шт.

23

194167C1

SCREW,5/8 - 11" x 1"

BOLT, cam follower, yoke pivot

2шт.

24

425-1110

NUT,5/8"-18, G5

2шт.

25

1315297C2

HUB,20T

CAM torque sensing, drive rotor

1шт.

26

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

retaining, hub cam follower

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

flat, hardened, 57/64 x 1-7/8 x 7/32 in.

1шт.

28

1315288C1

FLANGE NUT

hex, self locking, special, 7/8 in. NC

1шт.

29

1315304C2

PLATE

torque spring

1шт.

30

1319996C2

ROD

BOLT torque sensing spring, special, 11-1/2 in.

2шт.

31

429-106

NUT,3/8"-16, G8

hex, 3/8 in. NC, grade 8

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT repair, seal, variable pulley, Includes: Ref. 13 and 14

1шт.
