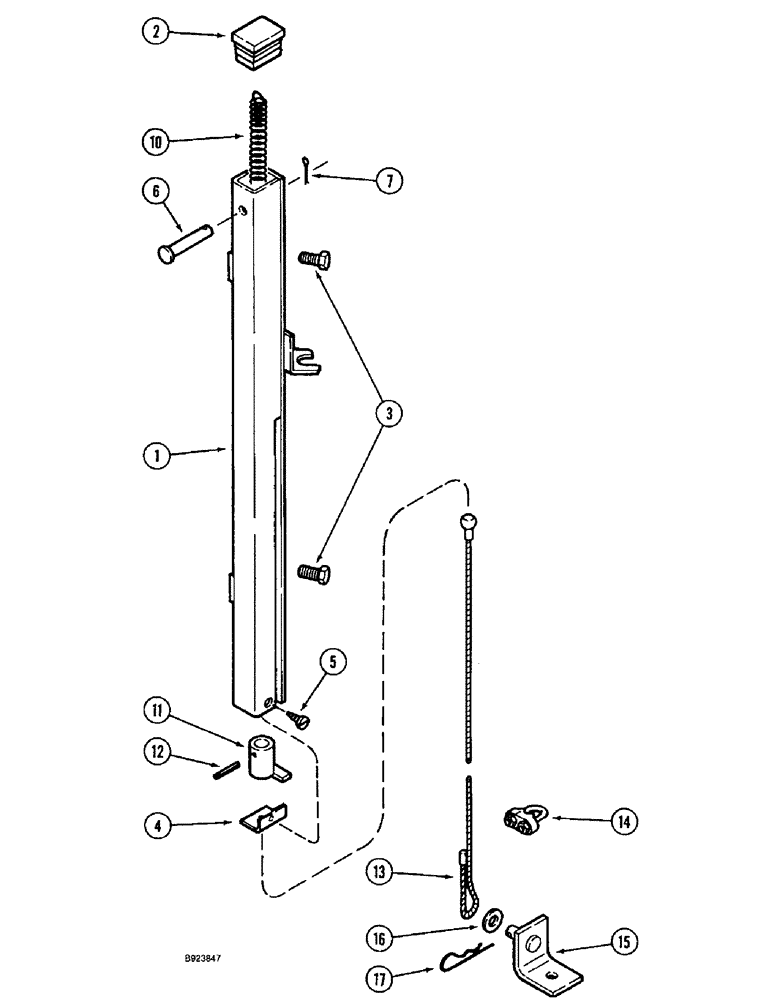

Запчасти Case IH 1666 (9A-46) - HEADER HEIGHT INDICATOR (13) - FEEDER

1979355C1

KIT

INDICATOR ASSY., header height attachment, Includes: Ref. 1 thru 17

1шт.

1

1312482C2

SUPPORT

height indicator

1шт.

2

1312488C1

CAP

height indicator

1шт.

3

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

4

1312483C1

ANGLE

BRACKET height indicator

1шт.

5

934666R1

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

self tapping, pan head, 10 x 10 mm

4шт.

6

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

1/4 x 1-3/4 in., grade 2

1шт.

7

432-612

COTTER PIN,3/32" x 3/4"

1шт.

10

1312489C1

SPRING

tension, indicator

1шт.

11

1312492C1

HOOK

indicator

1шт.

12

932265R1

LOCK PIN,M3 x 24, Slotted

1шт.

13

3168318R2

CABLE

height indicator

1шт.

14

715945R91

CLAMP

height cable

1шт.

15

1312485C2

SUPPORT ASSY.

indicator

1шт.

16

495-81024

WASHER,17/32" x 1 1/4" x .060"

flat, 17/32 x 1-1/4 x 1/16 in.

1шт.

17

153528C1

COTTER PIN

hair type

1шт.
