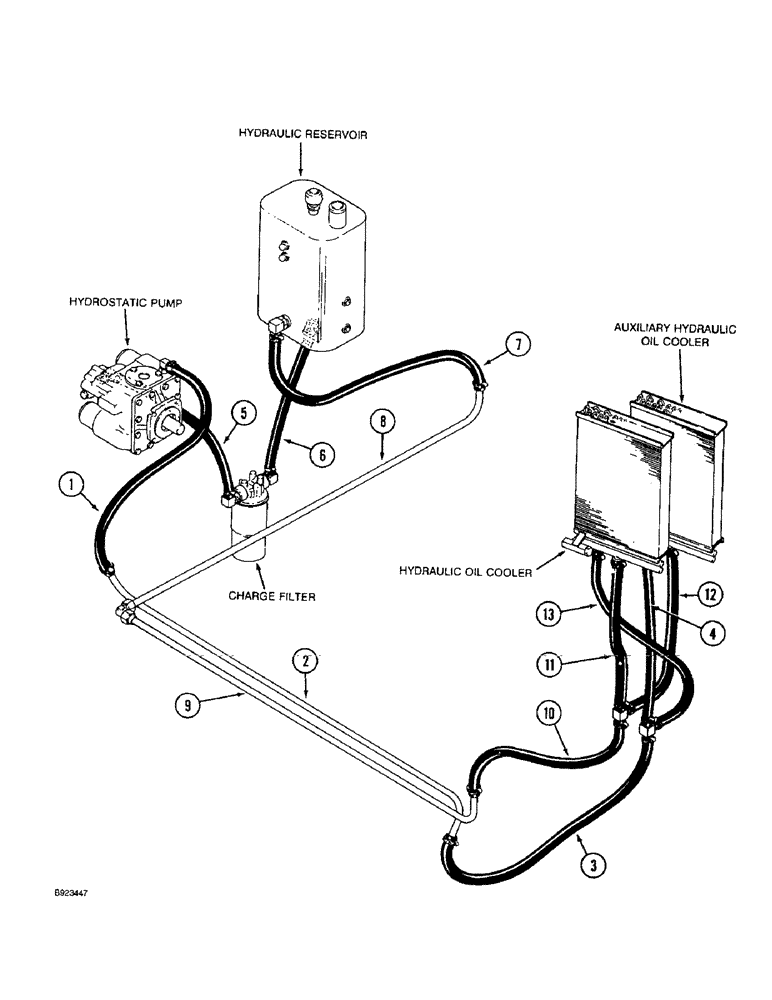

Запчасти Case IH 1666 (1-20) - PICTORIAL INDEX, OIL COOLER SYSTEM, RICE (00) - PICTORIAL INDEX

1

Auxiliary Cooler To Pump Hose, Upper, Pages 8-17, 8-19

1шт.

2

Auxiliary Cooler To Pump Tube, Pages 8-17, 8-19

1шт.

3

Auxiliary Cooler To Pump Hose, Intermediate, Pages 8-17, 8-19

1шт.

4

Auxiliary Cooler To Pump Hose, Lower, Pages 8-17, 8-19

1шт.

5

Pump To Filter Hose, Page 8-7

1шт.

6

Filter To Reservoir Hose, Page 8-7

1шт.

7

Cooler To Reservoir Hose, Upper, Pages 8-17, 8-19

1шт.

8

Oil Cooler Return Tube, Upper, Pages 8-17, 8-19

1шт.

9

Oil Cooler Return Tube, Lower, Pages 8-17, 8-19

1шт.

10

Oil Cooler To Reservoir Hose, Intermediate, Pages 8-17, 8-19

1шт.

11

Oil Cooler To Reservoir Hose, Lower, Pages 8-17, 8-19

1шт.

12

Auxiliary Cooler To Reservoir Hose, Pages 8-17, 8-19

1шт.

13

Auxiliary Cooler To Reservoir Hose, Pages 8-17, 8-19

1шт.
