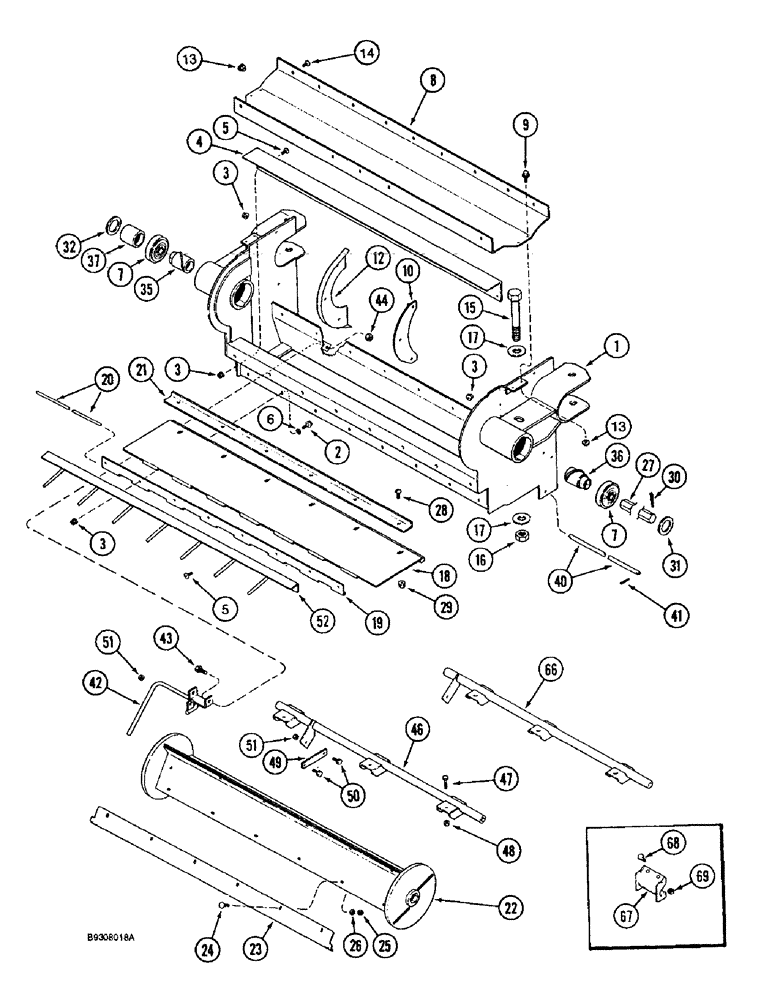

Запчасти Case IH 1666 (9A-38) - ROCK TRAP (13) - FEEDER

1

1327628C3

HOUSING

rock trap

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

27шт.

4

1320279C1

ANGLE

wear, rock trap

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 in.

12шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

ball, beater

2шт.

8

1327925C4

COVER ASSY

housing, rock trap, beater

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

1320254C1

PLATE

backup seal

2шт.

12

195202C1

SEAL

feeder

2шт.

13

231-5146

FLANGE NUT,3/8"-16

11шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 in.

7шт.

15

326-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

Replaces 326-16104

2шт.

16

232-41316

NUT,1"-8, GC

2шт.

17

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8"), Replaces 396-31106

4шт.

1324907C1

INSPECTION DOOR

ASSY., rock trap, Includes: Ref. 18, 19, and 20

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR rock trap

1шт.

19

1320154C1

HINGE

door, rock trap

1шт.

20

1320149C1

ROD

door hinge

1шт.

21

1324880C1

ANGLE

door

1шт.

22

1319834C1

BEATER

feed, trap

1шт.

23

1324438C1

SUPPORT

EXTENSION blade, beater

3шт.

23

1320921C2

BLADE

beater, serrated

3шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC x 1-1/2 in.

15шт.

25

425-106

NUT,3/8"-16, Cl 5

15шт.

26

492-11038

LOCK WASHER,3/8"

15шт.

27

1327502C1

SHAFT

beater drive

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, 3/8 NC x 3/4 in.

5шт.

29

231-5146

FLANGE NUT,3/8"-16

5шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

31

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

flat, 1-25/32 x 2-1/2 x 3/64 in.

1шт.

32

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 in.

1шт.

35

1320268C1

SPACER

sprocket, left hand

1шт.

36

1320269C1

SPACER

sprocket, right hand

1шт.

37

162172C1

SPACER

1-13/16 x 2-1/4 x 1-15/16 in.

1шт.

40

1320151C1

ROD

door latch

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

2шт.

42

188915A1

HANDLE

door, left hand, replaces 1324752C1

1шт.

43

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

44

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 in. NC

2шт.

46

1324742C1

SUPPORT TUBE,800, 44 mm Length

latch stop

1шт.

47

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

hex, special, 3/8 NC x 1-1/2 in.

3шт.

48

425-106

NUT,3/8"-16, Cl 5

3шт.

49

1320128C1

LINK

connecting

2шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

232-4136

LOCK NUT,3/8"-16, GC

2шт.

52

1320846C1

SUPPORT ASSY.

ANGLE

1шт.

66

1957362C1

SUPPORT

latch stop

1шт.

1957278C1

LATCH

KIT rock trap latch support, includes instructions, Includes: Ref. 67, 68, and 69

1шт.

67

1324775C1

SUPPORT

latch, center

1шт.

68

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

69

232-4136

LOCK NUT,3/8"-16, GC

2шт.
